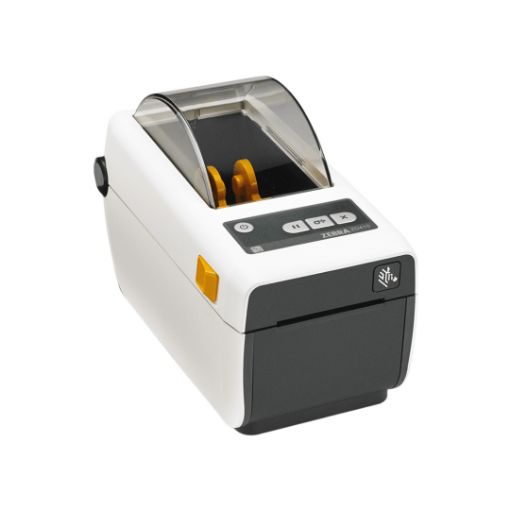

| Healthcare Features | • Healthcare preferred white color scheme
• Healthcare compliant power supply, IEC 60601-1 certified
• Disinfectant-ready, easy-to-clean plastics with sealed button interface
• UV-resistant housing supports UV cleaning protocols |
| Standard Features | • Print methods: Direct Thermal
• ZPL and EPL programming languages
• 5 status icon, 3 button user interface
• USB 2.0, USB Host
• Printer setup mobile app for Android and iOS via BLE
(Bluetooth Low Energy 5) connection*
* BLE is provided for use with Zebra printer setup mobile app only
• Real Time Clock (RTC)
• OpenACCESS™ for easy media loading
• Dual-wall frame construction
• ENERGY STAR® certified
• ZebraDesigner Essentials – easy label design tool free at
www.zebra.com/zebradesigner |
| Physical Characteristics | |
| Dimensions | 8.6 in. L x 4.5 in. W x 6.0 in. H
220 mm L x 115 mm W x 151 mm H |
| Weight | 2.2 lb./1.0 kg |
| Printer Specifications | |
| Operating System | Link-OS® printer operating system |
| Resolution | 203 dpi/8 dots per mm
300 dpi/12 dots per mm (optional) |
| Memory | 512 MB Flash; 256 MB SDRAM |
Maximum Print Width | 2.2 in./56 mm for 203 dpi
2.13 in./54 mm for 300 dpi |
Maximum
Print Speed
| 6 in./152 mm per second (203 dpi)
4 in./102 mm per second (300 dpi) |
Media Sensors
| Full width, moveable reflective/black mark sensor; multi-position transmissive/gap sensor
|
Firmware
| ZPL II; EPL 2; XML; ZBI; PDF Direct
|
Media Characteristics
| |
Label Length
| Minimum: 0.25 in./6.35 mm
Maximum: 39.0 in./991 mm
|
Media Width
| Minimum: 0.585 in./15 mm
Maximum: 2.36 in./60 mm
|
Media Roll Size
| Maximum outer diameter: 5.00 in./127 mm
Core inner diameter: 0.5 in./12.7 mm and
1.0 in./25.4 mm standard, 1.5 in./38.1, 2.0 in./50.8 mm and 3.0 in./76.2 mm using optional adapters
|
| Media Thickness | 0.003 in./0.08 mm min.; 0.0075 in./0.1905 mm max
|
Media Types
| Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands
|
| Printers Supplies | For industry-leading quality, service and thermal printing expertise, choose Zebra Certified Supplies to ensure consistent, optimized performance for your Zebra printer. |
Regulatory
| IEC 60950-1, IEC 62368-1, EN55022 Class B, EN55024, EN55035, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM
|
Environmental Compliance
| Environment
• RoHS Directive 2011/65/EU; Amendment 2015/863
• REACH SVHC 1907/2006
For a complete list of product and materials compliance, please visit
www.zebra.com/environment
|
Operating Characteristics
| |
| Operating Temp. | 40° to 105° F/4.4° to 41° C |
| Storage Temp. | -40° to 140° F/-40° to 60° C |
Operating Humidity
| 10% to 90% non-condensing
|
Storage Humidity
| 5% to 95% non-condensing |
Electrical
| Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR certified; Energy Efficiency Level VI certified; optional 2750 mAh battery; Healthcare models include IEC60601-1 certified power supply
|
Options and Accessories
| |
Media Handling
| Dispenser/Peeler: label peel and present with label
present sensor (factory installed or field installable)
Cutter (field installable)
|
Communications
| Field installable Ethernet 10/100, Serial RS-232 auto-sensing, wireless dual radio – 802.11ac Wi-Fi and Bluetooth Classic 4.2 |
Battery
| Provides power to the printer to support a full shift of printing at maximum print speed; supports all media handling options
|
| Keyboard Display Unit | ZKDU keyboard display units for stand-alone printing solutions |
| Mounting Adapter Bracket | Enable printer to be mounted in same location as LP2824 Plus printer
|
Fonts/Graphics/Symbologies
| |
Barcode Ratios
| 2:1 and 3:1
|
| 1D Barcodes | Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard
2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code |
2D Barcodes
| Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec
|
Fonts and Graphics
| 16 resident expandable ZPL II bitmap fonts, two resident scalable ZPL fonts, five resident expandable EPL2 fonts, native open-type font support, Unicode compliant. China units include SimSun simplified Chinese font
64 MB user available non-volatile memory, 8 MB user available SDRAM
|
Print DNA Software
| Print DNA is a suite of software that enables Zebra printers to deliver a full life cycle of exceptional experiences for every kind of user through built-in applications, utilities and tools to get your printer up and running quickly and securely. For more information, please visit
www.zebra.com/printdna
|
Included In The Box
| Printer, AC power supply, power cord(s), USB cable, Quick Start Guide, Regulatory Guide
|
Recommended Services
| Zebra OneCare™ maintenance plans provide peak performance and device uptime while protecting your critical operations and your printers with defined service levels. For more information go to
www.zebra.com/zebraonecare
|
Zebra OneCare
Select
| Comprehensive Coverage, including printheads, normal wear and accidental breakage
Priority access 24x7 live technical support and software updates
Advance Replacement and Express Shipping (Next Day Device Replacement)
Standard Commissioning
Online Return Material Authorization (RMA) support
|
Zebra OneCare
Essential
| Comprehensive Coverage, including printheads, normal wear and accidental breakage
Priority access 8x5 live technical support and software updates
Three-day depot repair turnaround time plus free return ground shipping
Online Return Material Authorization (RMA) support
|
Note: Service availability may vary by region.
| |
Product Warranty
| ZD400 Series printers are warranted against defects in workmanship and materials for a minimum period of 2 (two) years from the date of shipment. Warranty varies by region. For complete warranty details, please visit
www.zebra.com/warranty |
