| Specifications | |
| Physical Characteristics | |

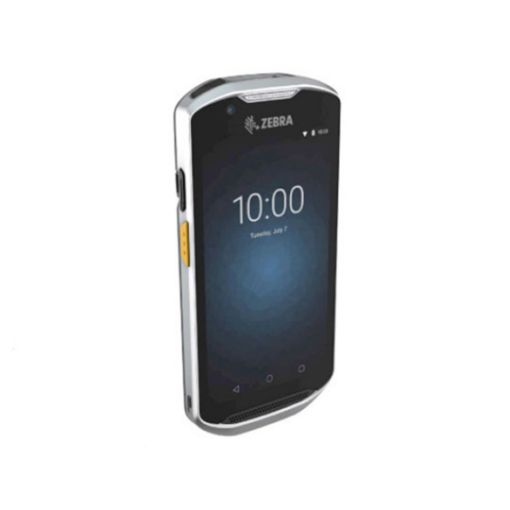

| Dimensions | TC52x/TC52ax/TC57x with SE4720:
6.10 in. L x 2.9 in. W x 0.73 in. H
155 mm L x 75.5 mm W x 18.6 mm H
TC52ax with SE55:
6.26 in. L x 2.9 in. W x 0.73 in. H
159 mm L x 75.5 mm W x 18.6 mm H |
| Weight (with battery) | TC52x/TC57x: 8.8 oz./249 g
TC52ax: (SE4720) 9.2 oz. /260 g
TC52ax: (SE55) 9.4 oz./266 g |
| Display | 5.0 in. Full High Definition (1920 x 1080); LED backlight, optically bonded to touch panel |
| Imager Window | Corning® Gorilla® Glass |
| Touchpanel | Dual mode capacitive touch with stylus, bare or gloved fingertip input (stylus sold separately); Corning Gorilla Glass; water droplet rejection; fingerprint resistant anti-smudge coating |
| Power | Rechargeable Li-Ion, PowerPrecision+; > 15.48 Watt hours; > 4150 mAh, improved battery metrics for better battery management; fast charging (up to 2.4 A); Warm Swap battery mode up to two minutes (120 seconds); BLE battery optional |
| Expansion Slot | Accessible MicroSD supports up to 256 GB SDXC |
| SIM | TC57x only: 1 nano SIM; 1 eSIM |
Network Connections
| TC52x/TC52ax/TC57x: WLAN, WPAN (Bluetooth), USB 2.0, High Speed (Host and Client)
TC57x only: WWAN
|
Notifications
| Audible tone; multi-color LEDs; haptic feedback
|
Keypad
| On-screen keypad and enterprise keyboard
|
Voice and Audio
| Three microphones with noise cancellation; vibrate alert; front facing speaker; Bluetooth wireless headset support; high quality speaker phone; PTT headset support; cellular circuit switch voice; HD voice; Super-wideband (SWB) and Fullband (FB) audio; 3.5mm audio jack
|
| Buttons | Four programmable buttons: dual dedicated scan buttons, dedicated push-to-talk button and volume up/down buttons
|
| Performance Characteristics | |
CPU
| TC52x/TC57x/TC52ax:
Qualcomm Snapdragon™ 660 octa-core, 2.45 GHz
|
Operating System
| TC52x: Upgradeable to Android 14
TC57x: Upgradeable to Android 14
TC52ax: Upgradeable to Android 14
|
Memory
| TC52x/TC57x: 4GB RAM/32GB UFS Flash
TC52ax: 4GB RAM/64GB UFS Flash
|
Security
| FIPS 140-2 Validated (ISO 19790) and Common Criteria certified (ISO 15408); FIPS 140-2 cryptography can be enabled on select configurations through a custom SKU request; Supports Secure Boot and Verified Boot. |
General Certifications
| TAA compliant; ARCore Google certification sustained; Android Enterprise Recommended |
User Environment
| |
Operating Temp.
| -4°F to 122°F/-20°C to 50°C |
| Storage Temp. | -40°F to 158°F/-40°C to 70°C
|
Humidity
| 5% to 95% non-condensing |
Drop Specifications
| Multiple 6 ft./1.8 m drops to concrete with the rugged boot accessory per Mil STD 810 G; multiple 4 ft./1.2 m drops to tile over concrete -10°C to 50°C/14°F to 122°F |
Tumble Specification
| 500 1.6 ft./0.5 m tumbles, meets or exceeds IEC tumble specification |
| Sealing | IP68 and IP65 with battery per applicable IEC sealing specifications |
| Electrostatic Discharge (ESD) | +/- 15 kV air discharge; +/- 8 kV direct discharge; +/- 8 kV indirect discharge |
Interactive Sensor Technology (IST)
| |
Light Sensor
| Automatically adjusts display backlight brightness
|
Magnetometer
| eCompass automatically detects direction and orientation
|
Motion Sensor
| 3-axis Accelerometer with MEMS Gyro
|
Pressure Sensor
| Automatically detects altitude information for locating (TC57x only) |
Proximity Sensor
| Automatically detects when the user places the handset against head during a phone call to disable display output and touch input
|
Data Capture
| |
Scanning
| All models: SE4720 1D/2D Scan Engine
TC52ax only: SE55 Advanced Range 1D/2D Scan Engine with IntelliFocus
|
Camera
| All models: Front — 5 MP; TC52x/TC57x Rear — 13 MP autofocus; flash LED generates balanced white light; supports Torch mode; TC52ax Rear — 13 MP Phase Detection Autofocus (PDAF); flash LED generates balanced white light; Torch mode
|
NFC
| ISO 14443 Type A and B; FeliCa and ISO 15693 cards; P2P mode (up to A10 only) and Card Emulation via Host; Card Emulation via UICC (WWAN terminals only)
|
Wireless WAN, Data and VoiceCommunications (TC57x Only)
| |
| Radio Frequency Band | Supports VoLTEs, Carrier Aggregation up to 3DL
AT&T FirstNet Ready certification
Verizon PNTM certification
LTE FDD: 700/800/850/900/1800/1900/AWS/2100/2600 (28,13,14,12,17/19,20/5,26/8/3/2,25/4,66/1/7);
LTE TDD: 1900/2300/2500 (39/40/41,38);
UMTS/HSPA/HSPA+: 850/900/AWS/1900/2100 (5/8/4/2/1);
GSM/GPRS/EDGE: 850/900/1800/1900 |
GPS
| TC57x only: Autonomous, Concurrent GPS; GLONASS; Gallileo; BeiDou and A-GPS; supports IZAT™ XTRA
|
Multimedia
| Wi-Fi Multimedia™ (WMM) and WMM-PS; TSPEC
|
Wireless LAN
| |
Radio
| IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax4; 2x2 MU-MIMO; Wi-Fi™ certified; Dual Band Simultaneous; IPv4, IPv6
|
Data Rates
| 5GHz: 802.11a/n/ac/ax4 — 20MHz, 40MHz, 80MHz - up to 1201 Mbps; 2.4GHz: 802.11b/g/n/ax4 — 20MHz up to 286.8 Mbps
|
Operating Channels
| Channel 1-13 (2412-2472 MHz): 1,2,3,4,5,6,7,8,9,10,11,12,13
Channel 36-165 (5180-5825 MHz): 36,40,44,48,52 56,60,64,100,104,108,112,116,120,124,128,132,136,
140,144,149,153,157,161,165
Channel Bandwidth: 20, 40, 80 MHz
Actual operating channels/ frequencies and bandwidths depend on regulatory rules and certification agency.
|
Security and Encryption
| WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP, and AES); WPA3 Personal (SAE); WPA/WPA2 Enterprise (TKIP and AES); WPA3 Enterprise (AES) — EAP-TTLS (PAP, MSCHAP, MSCHAPv2); EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP and EAP-PWD; WPA3 Enterprise 192-bit mode (GCMP-256) — EAP-TLS; Enhanced Open (OWE)
|
Certifications
| Wi-Fi Alliance Certifications:
Wi-Fi CERTIFIED n; Wi-Fi CERTIFIED ac; Wi-Fi CERTIFIED 6 (TC52ax only); Wi-Fi Enhanced Open; WPA2-Personal; WPA2-Enterprise; WPA3-Personal; WPA3-Enterprise (includes 192-bit mode); Protected Management Frames; Wi-Fi Agile Multiband; WMM; WMM-Power Save; WMM-Admission Control; Voice-Enterprise; Wi-Fi Direct
|
Fast Roam
| PMKID caching; Cisco CCKM; 802.11r (OTA); OKC
|
Wireless PAN
| |
Bluetooth
| Class 2, Bluetooth v5.0 (TC52x/TC57x) and Bluetooth v5.1 (TC52ax); Bluetooth Low Energy
|
Environmental Compliance
| RoHS Directive 2011/65/EU; Amendment 2015/863; REACH SVHC 1907/2006
For a complete list of product and materials compliance, please visit
www.zebra.com/environment
|
Warranty
| Subject to the terms of Zebra’s hardware warranty statement, the TC52x/TC52ax/57x Series is warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For complete warranty statement, please visit:
www.zebra.com/warranty
|
Recommended Services
| Zebra OneCareTM Essential and Select support services; Zebra Visibility Services — VisibilityIQTM Foresight
|
Footnotes
| 1. Requires Android 11.
2. Distance dependent on symbology type and size.
3. Based on typical user profiles.
4. 802.11ax is only offered in the TC52ax.
Specifications subject to change without notice.
For details related to Common Criteria support, please visit:
www.zebra.com/commoncriteria
|
