| Specifications | |
| Physical Characteristics | |

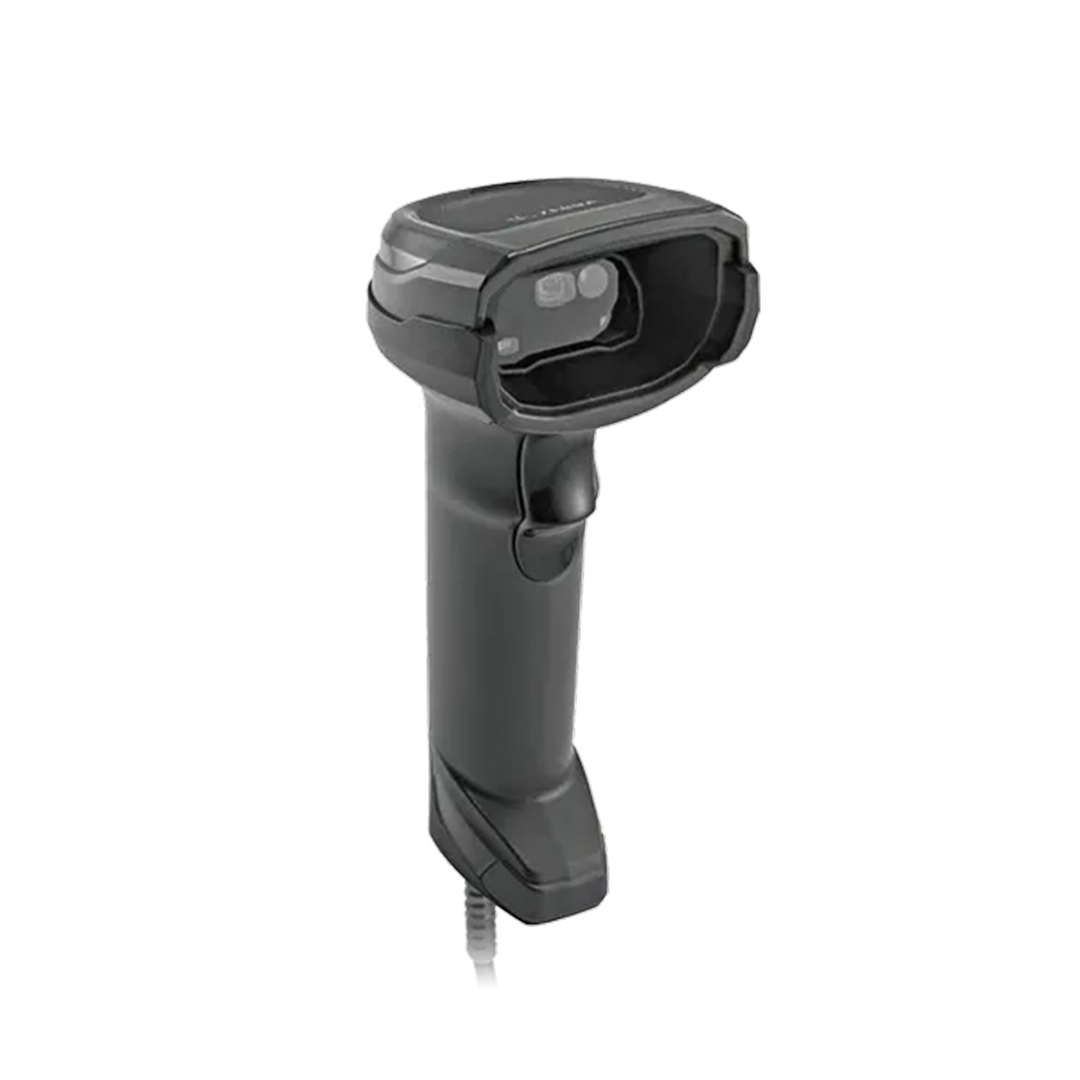

| Dimensions | Corded DS8108 and Cordless DS8178:
6.6 in. H x 2.6 in. W x 4.2 in. D
16.8 cm. H x 6.6 cm. W x 10.7 cm. D
Standard Cradle:
2.8 in. H x 3.3 in. W x 8.3 in. D
7.1 cm. H x 8.4 cm. W x 21.1 cm. D
Presentation Cradle:
2.9 in. H x 3.7 in. W x 4.8 in. D
7.4 cm. H x 9.4 cm. W x 12.2 cm. D |
| Weight | Corded DS8108: 5.4 oz./154 g
Cordless DS8178: 8.3 oz./235.3 g
Desk/Wall Cradle: 7.1 oz./202 g
Presentation Cradle: 6.5 oz./182 g |
| Input Voltage Range | DS8108: 4.5 to 5.5VDC
DS8178 Cradles: 5V: 4.7 to 5.5VDC; 12V: 10.8 to 13.2VDC |
| Current2 | Corded DS8108 Operating Current at Nominal Voltage (5.0V): 450 mA
Cradle: 470 mA (typical) Standard USB; 743mA (typical) 12V |
| Color | Nova White, Twilight Black |
| Supported Host Interfaces | USB Certified, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485 |
| Keyboard Support | Supports over 90 international keyboards |
| FIPS Security Certification | Certified Compliant with FIPS 140-2 |
| User Indicators | Direct decode indicator, good decode LEDs, rear view LEDs, beeper (adjustable tone and volume), dedicated Power Charge Gauge |
Performance Characteristics
| |
Light Source
| Aiming Pattern; circular 617nm amber LED
|
Illumination
| (2) 645nm red LEDs
|
Imager Field of View
| 48° H x 37° V nominal
|
Image Sensor
| 1,280 x 960 pixels
|
Minimum Print Contrast
| 16% minimum reflective difference
|
| Skew/Pitch Roll Tolerance | +/- 60°; +/- 60°; 0-360°
|
Imaging Characteristics
| |
Graphics Format
| Images can be exported as Bitmap, JPEG or TIFF
|
Image Quality
| 109 PPI on an A4 document |
Minimum Element Resolution
| Code 39 - 3.0 mil; Code 128 - 3.0 mil; Data Matrix - 6.0 mil; QR Code - 6.0 mil; PDF - 5.0 mil |
| User Environment | |
Operating Temperature
| 32° to 122° F/0° to 50° C
|
Charging Temperature
| 32° to 104° F/0° to 40° C |
| Storage Temperature | -40° to 158° F/-40° to 70° C
|
| Humidity | 5% to 95% RH, non-condensing |
Drop Specification
| Designed to withstand multiple drops at 6.0 ft/1.8 m to concrete |
Tumble Specification
| Designed to withstand 2,000 1.5 ft./0.5 m tumbles3
|
Environmental Sealing
| IP52 |
Electrostatic Discharge (ESD)
| DS8108/DS8178 and Cradles: ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect
|
Ambient Light Immunity
| 0 to 9,000 Foot Candles/0 to 96,840 Lux
|
| Radio Specifications | |
Bluetooth Radio
| Standard Bluetooth Version 4.0 with BLE: Class 1 330 ft./100m and Class 2 33 ft./10m, Serial Port and HID Profiles |
| Adjustable Bluetooth Power | Class 1: Output power adjustable down from 4 dBm in 8 Steps
Class 2: Output power adjustable down from 2 dBm in 8 Steps |
| Power | |
PowerPrecision+ Li-Ion Battery
| Capacity: 2500 mAh
Number of scans from full charge: 65,0004
Charge time from empty to full: 9 hours over USB
Charge time from audible low charge warning to Ready-to-Scan at 20% of full charge (default): 3 hours over USB |
| PowerCap Capacitor | Capacity: 440 F
Number of scans from full charge: 2,0004
Number of scans from Ready-To-Scan at 20% of full charge (default): 2004
Number of scans from Ready-To-Scan at 15% of full charge: 1004
Charge time from empty to full: 30 min over USB
Charge time from audible low charge warning to Ready-to-Scan at 20% of full charge (default): 90 sec over USB
Charge time from audible low charge warning to Ready-to-Scan at 15% of full charge: 35 sec over USB |
| Regulatory | |
| Electrical Safety | EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07 |
| Environmental | RoHS EN 50581 |
| LED Safety | IEC 62471 |
| IT Emissions | EN 55022 (Class B); EN 55032 (Class B) |
| IT Immunity | EN 55024 |
| Harmonic Current Emissions | EN 61000-3-2 |
| Voltage Fluctuation and Flicker | EN 61000-3-3 |
| Radio Frequency Devices | 47 CFR Part 15, Subpart B, Class B |
| Digital Apparatus | ICES-003 Issue 6, Class B |
| Accessories | Standard cradle, presentation cradle, wall mount bracket, spare battery, spare PowerCap; document capture stands |
| Decode Capabilities5 | |
1D
| Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) |
2D
| PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes, SecurPharm, DotCode, Dotted DataMatrix
|
Digimarc
| Digital watermark technology |
Decode Ranges (Typical)6
| |
Symbology/Resolution
| Near/Far
|
Code 39: 3 mil
| 2.2 in./5.6 cm to 5.0 in./12.7 cm
|
Code 39: 20 mil
| 0 in./0 cm to 36.8 in./93.5 cm
|
Code 128: 3 mil
| 2.6 in./6.6 cm to 4.5 in./11.4 cm
|
Code 128: 5 mil
| 1.6 in./4.1 cm to 8.4 in./21.3 cm
|
Code 128: 15 mil
| 0 in./0 cm to 27.1 in./68.8 cm
|
PDF 417: 5 mil
| 2.3 in./5.8 cm to 6.4 in./16.3 cm
|
PDF 417: 6.7 mil
| 1.8 in./4.6 cm to 8.5 in./21.6 cm
|
UPC: 13 mil (100%)
| 0 in./0 cm to 24.0 in./61.0 cm |
Data Matrix: 7.5 mil
| 2.1 in./5.3 cm to 6.9 in./17.5 cm
|
Data Matrix: 10 mil
| 1.1 in./2.8 cm to 9.9 in./25.1 cm
|
QR: 20 mil
| .1 in./.3 cm to 17.6 in./44.7 cm
|
Warranty
| Subject to the terms of Zebra’s hardware warranty statement, the DS8178 and the CR8178 are warranted against defects in workmanship and materials for a period of three years from the date of shipment. The DS8108 is warranted against defects in workmanship and materials for a period of five years from the date of shipment. Complete Zebra hardware product warranty statement:
www.zebra.com/warranty
|
Recommended Services
| Zebra OneCare Select; Zebra OneCare Essential
|
Utilities and Management
| |
123Scan
| Programs scanner parameters, upgrades firmware, displays scanned barcode data, scanning statistics, battery health, asset data and prints reports.
www.zebra.com/123scan |
Symbol Scanner SDK
| Generates a fully-featured scanner application, including documentation, drivers, test utilities and sample source code.
www.zebra.com/scannersdkforwindows |
Scanner Management Service (SMS)
| Remotely manages your Zebra scanner and queries its asset information.
www.zebra.com/sms |
Footnotes
| 1 Requires firmware version CAACXS00-004-R00 or later.
2 Refer to Product Reference Guide for currents when other power sources
are used.
3 1 tumble = 0.5 cycle.
4 At one scan per second.
5 Refer to Product Reference Guide for complete list of symbologies.
6 Printing resolution, contrast, and ambient light dependent.
Specifications are subject to change without notice. |
DataCapture DNA
| DataCapture DNA is a suite of highly intelligent firmware, software, utilities and apps exclusively engineered to add functionality and simplify the deployment and management of Zebra scanners. For more information about DataCapture DNA and its applications, please visit
www.zebra.com/datacapturedna |
