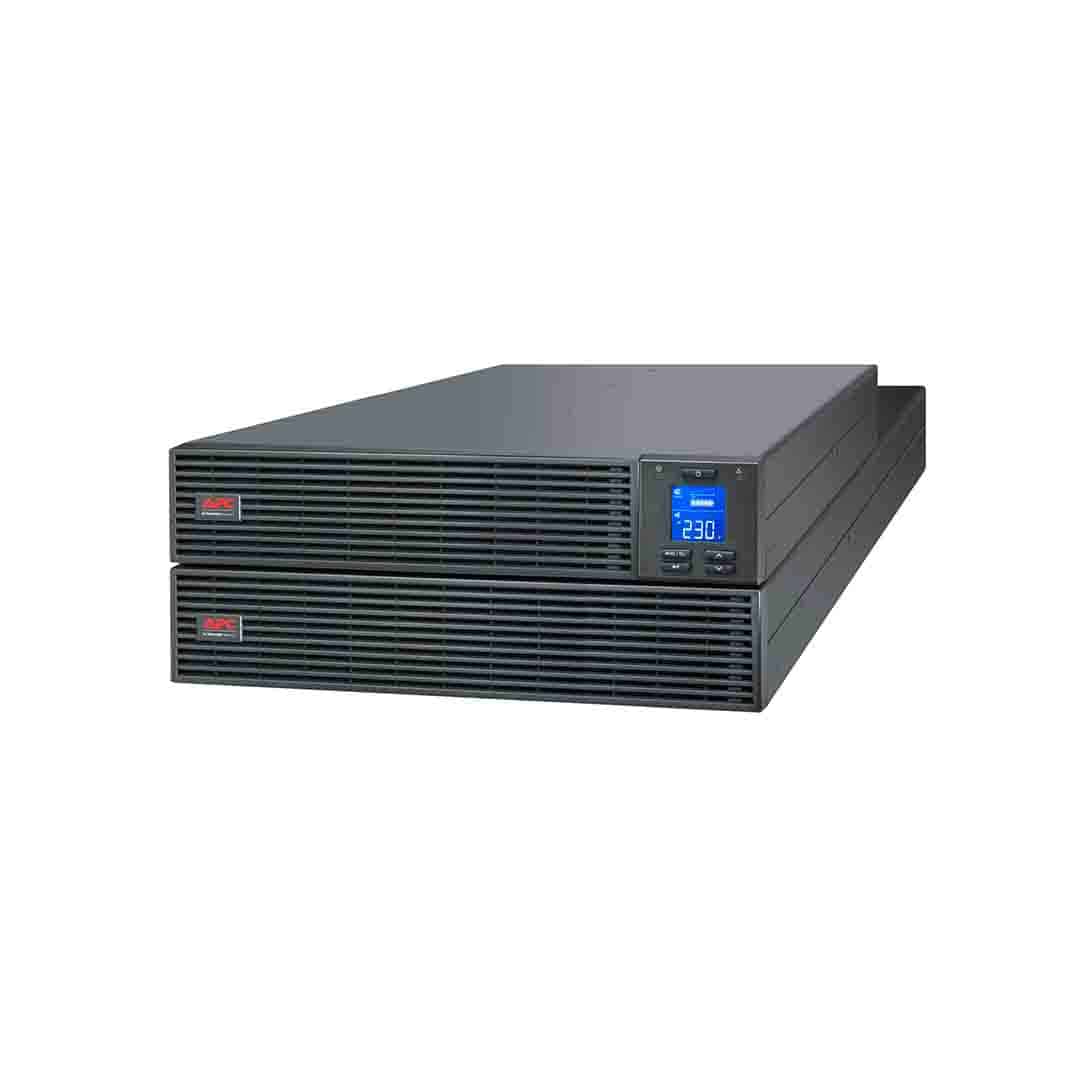

    !!New APC Easy UPS SRV RM 6000VA/6.0kWatts , 230V ,with RailKit, (PN:SRV6KRIRK)

    Manufacturer: APC
    High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions Includes: Basic UPS signalling RS-232 cable, CD with software, Rack Mounting brackets, Rack Mounting support rails, USB cable, User Manual
    SKU: เครื่อง/set

    THB109,580.00 incl vat
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    APC Easy UPS On-Line SRV RM 6000 VA 230V with Rail Kit

    • High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions
    • Includes: Basic UPS signalling RS-232 cable, CD with software, Rack Mounting brackets, Rack Mounting support rails, USB cable, User Manual

    Key Features

    • Automatic internal bypass
      Supplies utility power to the connected loads in the event of a UPS power overload or fault.
    • Automatic restart of loads after UPS shutdown
      Automatically starts up the connected equipment upon the return of utility power.
    • ECO Mode
      Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
    • EPO
      Attach the device to an Emergency Power Off (EPO) system so that power can be turned off in an emergency situation.
    • Input power factor correction
      Minimizes installation costs by enabling the use of smaller generators and cabling.
    • Intelligent battery management
      Maximizes battery performance, life, and reliability through intelligent, precision charging.
    • Intelligent SmartSlot
      Mini slot supports various optional management cards which provide basic or essential monitoring, management and control features for the UPS.
    • LCD graphics display
      Text and mimic diagrams that display modes of operation, system parameters and alarms.
    • Serial connection
      Use your PC to access additional power protection and management features for your UPS via a serial port.
    • USB connection
      Use your PC to access additional power protection and management features for your UPS via a USB Port.

    Easy UPS Features & Benefits

    Features

    • Pure sine wave output on battery
      Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
    • USB connection
      Use your PC to access additional power protection and management features for your UPS via a USB Port.
    • Allows the user to manage the UPS functions, schedule automatic shutdown and monitor the power grid occurrences through an interactive interface that ensures an easy and intuitive monitoring.
      Management Software
    • Safety-agency approved
      Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

    Serviceability

    • Automatic self-test
      Periodic battery self-test ensures early detection of a battery that needs to be replaced.
    • Predictive failure notification.
      Provides early-warning fault analysis ensuring proactive component replacement.
    • Disconnected battery notification
      Warns when a battery is not available to provide backup power.
    • Audible alarms
      Provides notification of changing utility power and UPS power conditions

    Manageability

    • Network manageable
      Provides remote power management of the UPS over the network.
    • SmartSlot
      Customize UPS capabilities with management cards.
    • LCD graphics display
      Text and mimic diagrams that display modes of operation, system parameters and alarms.
    • LED Indicators
      Provide easy-to-read status of the unit and utility power conditions.
    • Serial connectivity
      Provides management of the UPS via a serial port.
    Product Specification
    BrandAPC
    Model Name/NumberSRV6KRIL
    Capacity6.0 kW / 6.0 kVA
    Efficiency94.0 %
    Audible Noise55.0 dBA
    Weight78 kg (Net),88 Kg (Shipping)
    Storage Temperature-15 to 60 Deg C
    Supported Battery TypesMaintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
    WaveformSinewave
    TopologyDouble Conversion Online
    Crest Factor3:1
    Operating Temp Deg Celsius0 to 40 Deg C
    Voltage230 V (Input/Output)
    Output Voltage NoteConfigurable for 220 : 230 or 240 nominal output voltage
    Output Frequency (sync to mains)50/60Hz +/- 3 Hz
    Other Programmable Voltages220 V,240 V
    Output Connections(1) Hard Wire 3-wire (H N + G) (Battery Backup)
    BypassInternal Bypass (Automatic and Manual)
    Warranty2 Year Repair or Replace
    Typical Recharge Time3 hrs
    Humidity0 to 95% non-condensing
    Input Frequency40 - 70 Hz
    Input ConnectionsHard Wire 3 wire (1PH+N+G)
    Input Voltage Range for Main Operations176 - 300 V
    Input Voltage Adjustable Range for Mains Operation110 - 300 V (half load)
    Battery Charge Power502 Watt
    Battery Volt-Amp-Hour Capacity1512
    Interface PortsDB-9 RS-232,Intelligent Smart Slot,USB
    Control PanelMulti-function LCD status and control console
    Audible AlarmAlarm when on battery : distinctive low battery alarm : overload continuous tone alarm
    Emergency Power Off (EPO)Yes
    Available SmartSlot Interface Quantity1
    Surge Energy Rating600 Joules
    Maximum Height219 mm,490 mm (Shipping)
    Maximum Width438 mm,600 mm (Shipping)
    Maximum Depth615 mm,870 mm (Shipping)
    Rack Height5U
    ColorBlack
    Operating Elevation0-3000 meters
    Storage Elevation0-15000 meters
    Protection ClassIP 20
    ApprovalsCE,IEC 62040-1-1,IEC 62040-1-2
    RoHSCompliant
