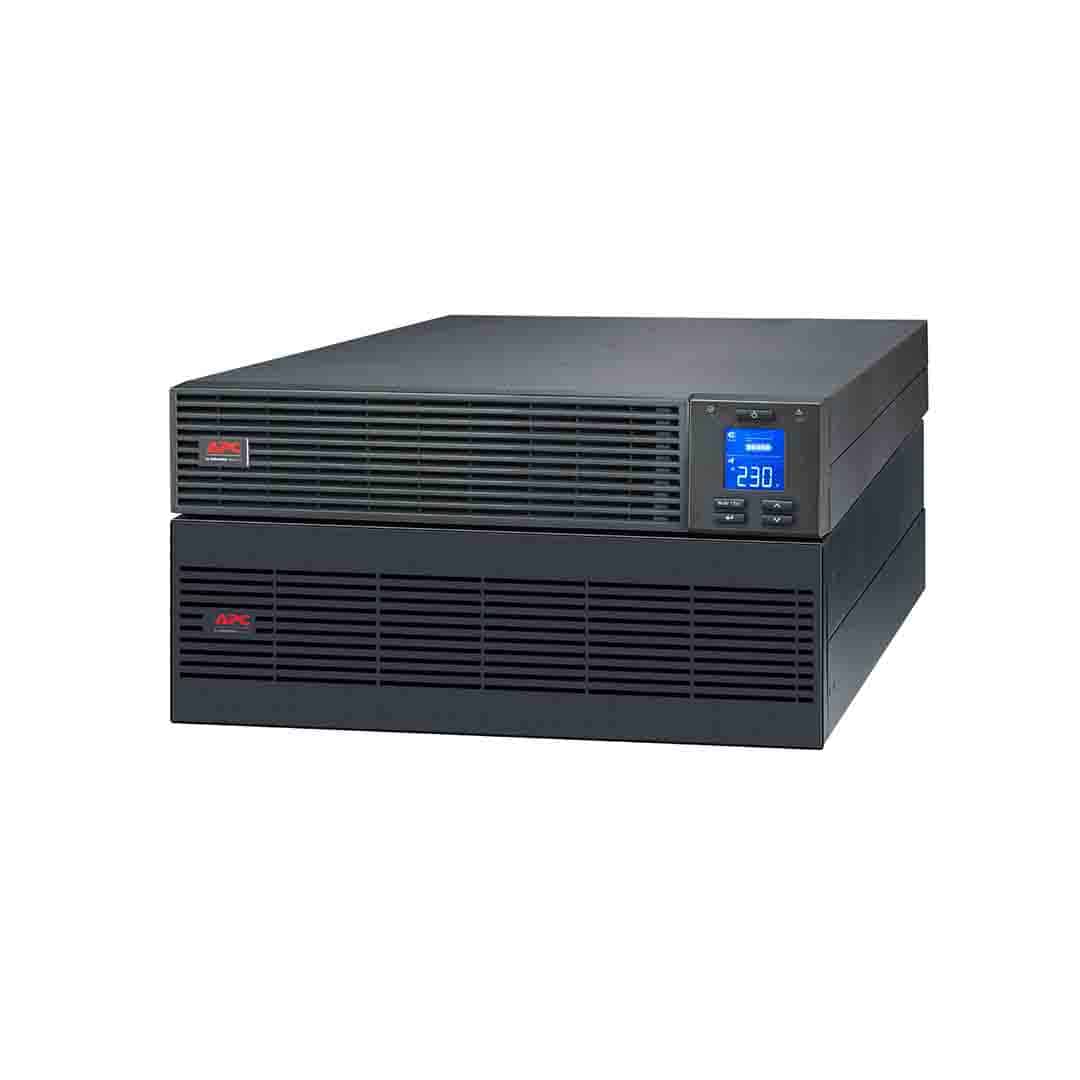

Picture of APC Easy UPS SRV RM 6000VA 230V with External Battery Pack ไม่มี rail kit มาให้ ( เพิ่ม battery pack ได้ ) (PN:SRV6KRIL) Picture of APC Easy UPS SRV RM 6000VA 230V with External Battery Pack ไม่มี rail kit มาให้ ( เพิ่ม battery pack ได้ ) (PN:SRV6KRIL) Picture of APC Easy UPS SRV RM 6000VA 230V with External Battery Pack ไม่มี rail kit มาให้ ( เพิ่ม battery pack ได้ ) (PN:SRV6KRIL) Picture of APC Easy UPS SRV RM 6000VA 230V with External Battery Pack ไม่มี rail kit มาให้ ( เพิ่ม battery pack ได้ ) (PN:SRV6KRIL)

APC Easy UPS SRV RM 6000VA 230V with External Battery Pack ไม่มี rail kit มาให้ ( เพิ่ม battery pack ได้ ) (PN:SRV6KRIL)

Manufacturer: APC
Be the first to review this product
APC Easy UPS On-Line SRV RM Extended Runtime 6000VA 230V with External Battery Pack High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions Includes: Basic UPS signalling RS-232 cable, CD with software, Rack Mounting brackets, USB cable, User Manual
SKU: เครื่อง/set
฿12,120.00 incl vat







Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Product Files

Product Description

Features:
  • Automatic internal bypass: Supplies utility power to the connected loads in the event of a UPS power overload or fault.
  • ECO Mode: Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
  • EPO: Attach the device to an Emergency Power Off (EPO) system so that power can be turned off in an emergency situation.
  • Hard Wire Input: UPS requires a hard wire input in order to deliver maximum output wattage to protected equipment
  • Input power factor correction: Minimizes installation costs by enabling the use of smaller generators and cabling.
  • Intelligent battery management: Maximizes battery performance, life, and reliability through intelligent, precision charging.
  • LCD display: Alpha-Numeric Display which displays system parameters and alarms.
  • Rack/Tower convertible: Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
  • High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions
  • Includes: Basic UPS signalling RS-232 cable, CD with software, Rack Mounting brackets, USB cable, User Manual

SRV6KRIL Features

Max. Capacity Used100%
Output power capacity
6.0kWatts / 6.0kVA
Rack Height
5U
Output Connections
(1) Hard Wire 3-wire (H N + G) (Battery Backup)
Nominal Output Voltage
230V
Nominal Input Voltage
230V
Input Connections
Hard Wire 3 wire (1PH+N+G)

APC Easy UPS On-Line SRV RM Extended Runtime 6000VA 230V with External Battery Pack
High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions
Includes: Basic UPS signalling RS-232 cable, CD with software, Rack Mounting brackets, USB cable, User Manual
  • Automatic internal bypass
    Supplies utility power to the connected loads in the event of a UPS power overload or fault.
  • Automatic restart of loads after UPS shutdown
    Automatically starts up the connected equipment upon the return of utility power.
  • ECO Mode
    Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
  • EPO
    Attach the device to an Emergency Power Off (EPO) system so that power can be turned off in an emergency situation.
  • Input power factor correction
    Minimizes installation costs by enabling the use of smaller generators and cabling.
  • Intelligent battery management
    Maximizes battery performance, life, and reliability through intelligent, precision charging.
  • Intelligent SmartSlot
    Mini slot supports various optional management cards which provide basic or essential monitoring, management and control features for the UPS.
  • LCD graphics display
    Text and mimic diagrams that display modes of operation, system parameters and alarms.
  • Serial connectivity
    Provides management of the UPS via a serial port.
  • USB connectivity
    USB compatibility and connectivity ensures quick and easy installation of the free PowerChute Personal Edition Software.

Easy UPS On-Line Features & Benefits

Manageability

SmartSlot
Customize UPS capabilities with management cards.
Serial connectivity
Provides management of the UPS via a serial port.
Network manageable
Provides remote power management of the UPS over the network.
LED Indicators
Provide easy-to-read status of the unit and utility power conditions.
LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms.

Features

Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
Double conversion on-line topology
Guarantees a consistently high level of power quality. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process. The battery is only used as a back-up source.
Allows the user to manage the UPS functions, schedule automatic shutdown and monitor the power grid occurrences through an interactive interface that ensures an easy and intuitive monitoring.
Management Software
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Management Software
Allows you to easily monitor your utility power and manage your UPS.
High efficiency
High efficiency rates that remain stable even at lower operating power levels
Input Power Factor Correction
Minimizes installation costs by enabling the use of smaller generators and cabling.

Serviceability

Disconnected battery notification
Warns when a battery is not available to provide backup power.
Predictive failure notification.
Provides early-warning fault analysis ensuring proactive component replacement.
Audible alarms
Provides notification of changing utility power and UPS power conditions
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Availability

Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.

Technical Specifications

Max Configurable Power (Watts)
6.0kWatts / 6.0kVA
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage
Efficiency at Full Load
94.0 %
Output Frequency (sync to mains)
50/60Hz +/- 3 Hz
Other Output Voltages
220, 240
Load Crest Factor
3 : 1
Topology
Double Conversion Online
Waveform type
Sine wave
Bypass
Internal Bypass (Automatic and Manual)

Input

Input frequency
40 - 70 Hz
Input voltage range for main operations
176 - 300V
Input voltage adjustable range for mains operation
110 - 300 (half load)V
Efficiency at Full Load
94.0 %
Other Input Voltages
220, 240

Batteries & Runtime

Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
3hour(s)
Battery Charge Power (Watts)
502Watts
Extendable Run Time
1
Battery Volt-Amp-Hour Capacity
1512
Extended Run Options
APC-Easy-UPS-On-Line-SRV-RM-Extended-Runtime-6000VA-230V-with-External-Battery-Pack
Runtime
View Runtime Chart

Communications & Management

Interface Port(s)
DB-9 RS-232, Intelligent Smart Slot, USB
Control panel
Multi-function LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency Power Off (EPO)
Yes
Available SmartSlot™ Interface Quantity
1

Surge Protection and Filtering


Surge energy rating
600Joules

Physical

Maximum Height
8.64inches (219MM, 21.95CM)
Maximum Width
17.24inches (438MM, 43.8CM)
Maximum Depth
24.21inches (615MM, 61.5CM)
Net Weight
171.96lbs. (78.0KG)
Shipping weight
194.01lbs. (88.0KG)
Shipping Height
19.29inches (490MM, 49.0CM)
Shipping Width
23.62inches (600MM, 60.0CM)
Shipping Depth
34.25inches (870MM, 87.0CM)
Color
Black

Environmental

Operating Temperature
32 - 104 °F (0 - 40 °C)
Operating Relative Humidity
0 - 95 (non-condensing) %
Operating Elevation
0-10000ft (0-3000meters)
Storage Temperature
-15 - 60 °C
Storage Relative Humidity
0 - 95 (non-condensing) %
Storage Elevation
0-50000ft (0-15000meters)
Audible noise at 1 meter from surface of unit
55.0dBA
Protection Class
IP 20

Conformance

Approvals
CE, IEC 62040-1-1, IEC 62040-1-2
Standard warranty
2 years repair or replace

Sustainable Offer Status

RoHS

Compliant

REACH

REACH: Contains SVHCs



Product Specification
BrandAPC
Model Name/NumberSRV6KRIL
Capacity6.0 kW / 6.0 kVA
Efficiency94.0 %
Audible Noise55.0 dBA
Weight78 kg (Net),88 Kg (Shipping)
Storage Temperature-15 to 60 Deg C
Supported Battery TypesMaintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
WaveformSinewave
TopologyDouble Conversion Online
Crest Factor3:1
Operating Temp Deg Celsius0 to 40 Deg C
Voltage230 V (Input/Output)
Output Voltage NoteConfigurable for 220 : 230 or 240 nominal output voltage
Output Frequency (sync to mains)50/60Hz +/- 3 Hz
Other Programmable Voltages220 V,240 V
Output Connections(1) Hard Wire 3-wire (H N + G) (Battery Backup)
BypassInternal Bypass (Automatic and Manual)
Warranty2 Year Repair or Replace
Typical Recharge Time3 hrs
Humidity0 to 95% non-condensing
Input Frequency40 - 70 Hz
Input ConnectionsHard Wire 3 wire (1PH+N+G)
Input Voltage Range for Main Operations176 - 300 V
Input Voltage Adjustable Range for Mains Operation110 - 300 V (half load)
Battery Charge Power502 Watt
Battery Volt-Amp-Hour Capacity1512
Interface PortsDB-9 RS-232,Intelligent Smart Slot,USB
Control PanelMulti-function LCD status and control console
Audible AlarmAlarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency Power Off (EPO)Yes
Available SmartSlot Interface Quantity1
Surge Energy Rating600 Joules
Maximum Height219 mm,490 mm (Shipping)
Maximum Width438 mm,600 mm (Shipping)
Maximum Depth615 mm,870 mm (Shipping)
Rack Height5U
ColorBlack
Operating Elevation0-3000 meters
Storage Elevation0-15000 meters
Protection ClassIP 20
ApprovalsCE,IEC 62040-1-1,IEC 62040-1-2
RoHSCompliant
