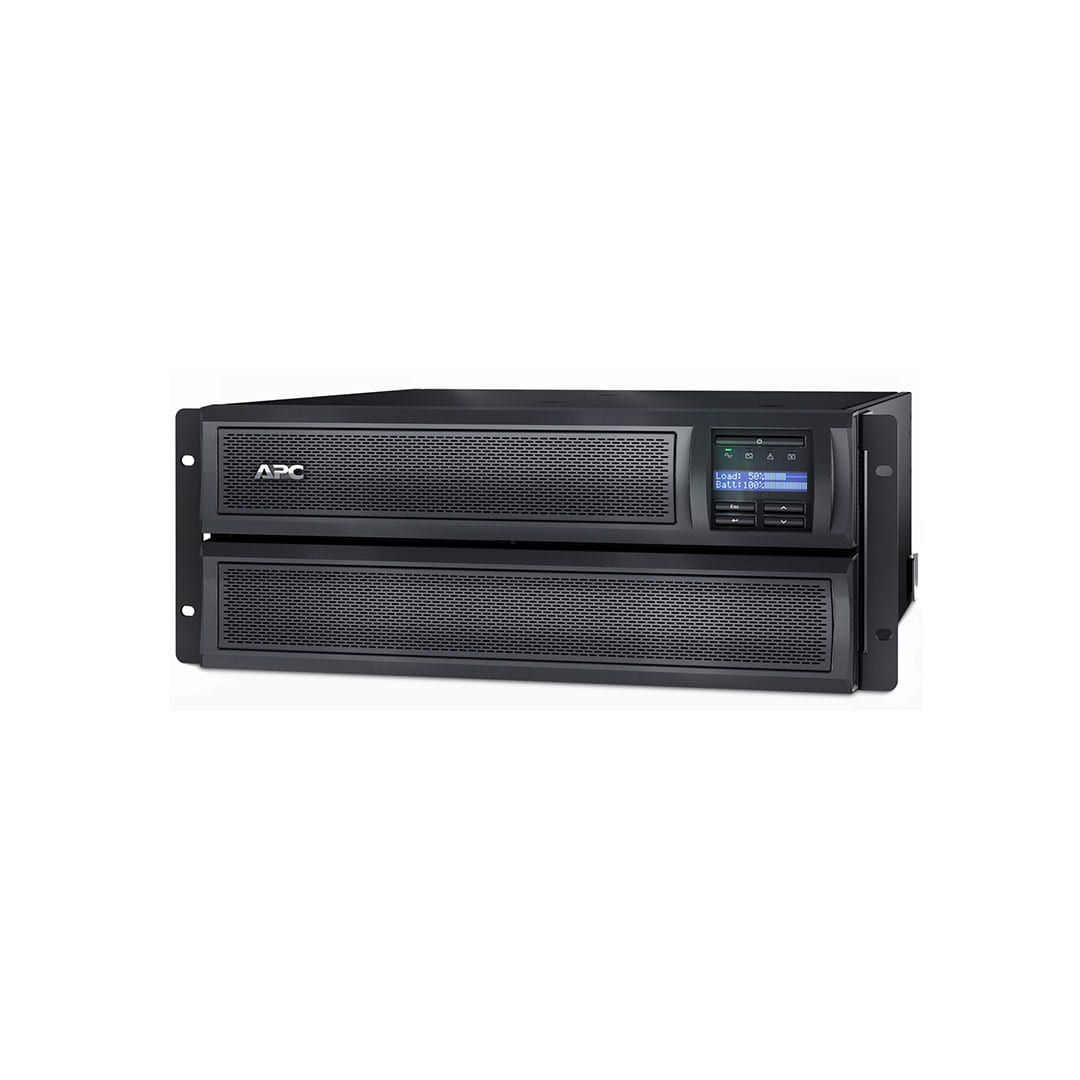

APC Smart-UPS X 2200VA Short Depth Tower/Rack Convertible LCD 200-240V with Network Card (PN:SMX2200HVNC)

DESCRIPTION
SKU     SMX2200HVNC
Brand     APC
Model     [SMX2200HVNC] UPS “APC” Smart-UPS X 2200VA Short Depth Tower/Rack Convertible LCD 200-240V with Network Card
Output Power Capacity     1.98 KWatts /2.2 kVA
Nominal Output Voltage     208V , 230V
Topology     Line Interactive
Output Connections     Output Connections (2) IEC 320 C19 (Battery Backup) (2) IEC Jumpers (Battery Backup) (8) IEC 320 C13 (Battery Backup)
Nominal Input Voltage     208V , 230V
Input Connections     British BS1363A, IEC-320 C20, Schuko CEE 7/EU1-16P
Input Voltage Range for Main Operation     140 – 280V
Typical Recharge Time     3hour(s)
Control Panel     LED status display with On Line : On Battery : Replace Battery and Overload indicators, Multi-function LCD status and control
Height     432mm ,43.2CM
Width     178mm ,17.8CM
Depth     483mm ,48.3CM
Weight     38.56KG
Warranty     3 Yrs./ Onsite Swap

APC Smart-UPS X 2200VA Short Depth Tower/Rack Convertible LCD 200-240V with Network Card

• Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other …
• Includes: CD with software, Documentation CD, Installation guide, Rack Mounting support rails, Smart UPS signalling RS-232 cable, Temperature Probe, USB cable, Web/SNMP …

Features

• Cold-start capable
  Provides temporary battery power when the utility power is out.
• Energy meter
  Provides actual kilowatt hours of usage for energy conscious users.
• Green mode
  Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
• High frequency design
  Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.
• High online efficiency
  Reduces utility costs, generates less heat.
• Intelligent battery management
  Maximizes battery performance, life, and reliability through intelligent, precision charging.
• Intuitive LCD interface
  Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
• Multiple switched outlet groups
  Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
• Predictive replace battery date
  Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
• Pure sine wave output on battery
  Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
• Rack/Tower convertible
  Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
• Scalable runtime
  Allows additional run time to be quickly added as needed.
• Sequenced network shutdown and reboot
  Customize network shutdown and reboot sequence of connected servers and UPSs.
• SmartSlot
  Customize UPS capabilities with management cards.
• StruxureWare Data Center Expert compatible
  Enables centralized management via StruxureWare Data Center Expert.
• Temperature-compensated battery charging
  Prolongs battery life by regulating the charge voltage according to battery temperature.

Smart-UPS Features & Benefits

• Network manageable
  Provides remote power management of the UPS over the network.
• Disconnected battery notification
  Warns when a battery is not available to provide backup power.
• Serial connectivity
  Provides management of the UPS via a serial port.
• USB connectivity
  Provides management of the UPS via a USB port (not available on all models).
• Audible alarms
  Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
• LED status indicators
  Quickly understand unit and power status with visual indicators.
