| SPECIFICATIONS |

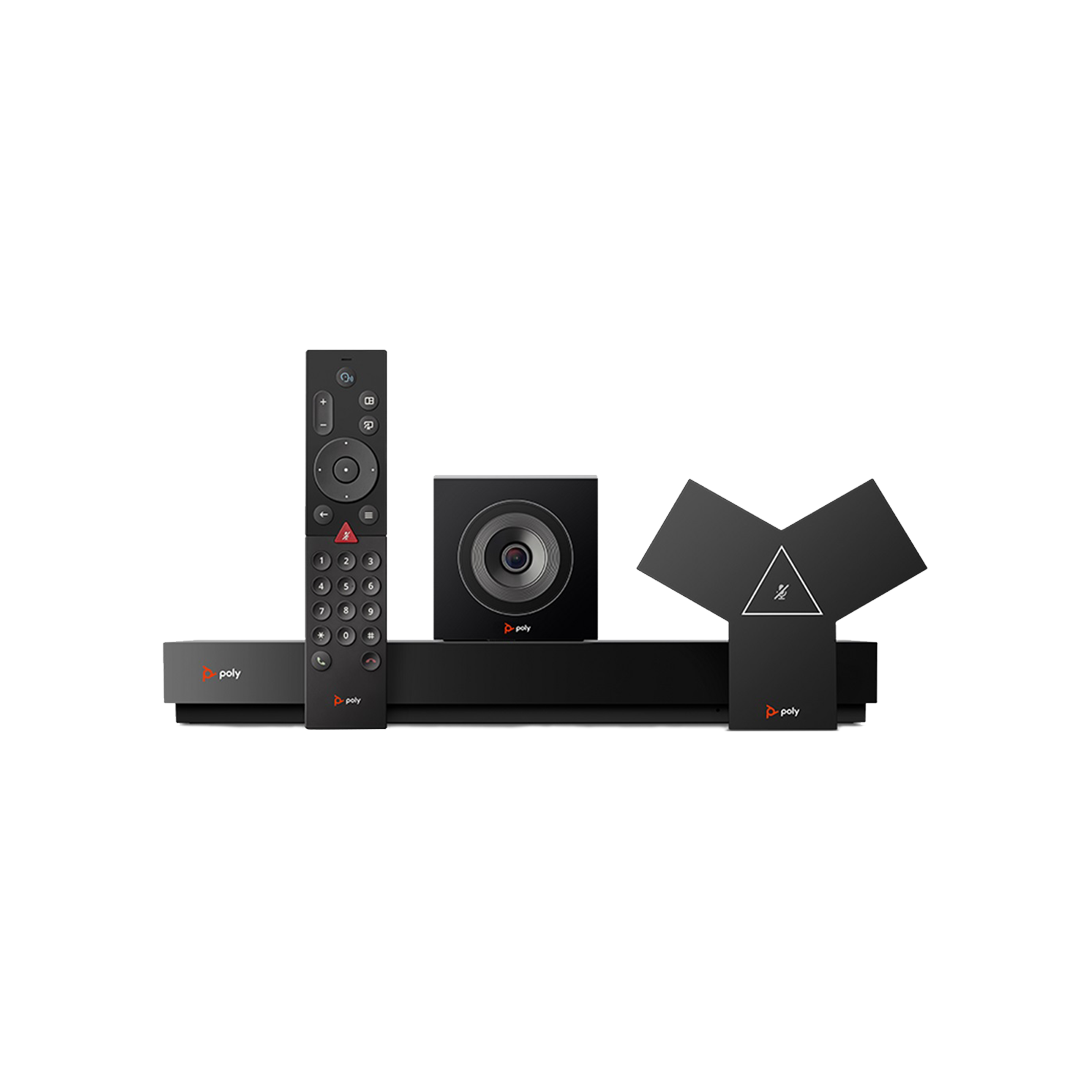

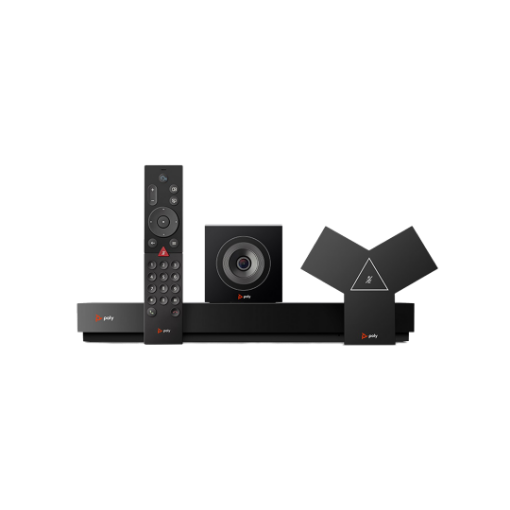

| PACKAGE INCLUDES | • G7500 codec
• EagleEye IV camera or EagleEye Cube USB
• Poly IP Microphone
• Bluetooth® remote control
• Cable bundle |
| VIDEO STANDARDS AND PROTOCOLS | • H.264 AVC, H.264 High Profile, H.265
• H.239
• H.264 video error concealment |
| VIDEO INPUT | • 1x HDCI
• 1x HDMI
• 3x USB
• Camera switching via touch interface |
| VIDEO OUT | • 2x HDMI
• Touch display compatible |
| PEOPLE VIDEO RESOLUTION | • 4K, 30 fps (TX and RX) from 2048 Kbps
• 1080p, 60 fps from 1740 Kbps
• 1080p, 30 fps from 1024 Kbps
• 720p, 60 fps from 832 Kbps
• 720p, 30 fps from 512 Kbps
• 4SIF/4CIF, 60 fps from 512 Kbps
• 4SIF/4CIF, 30 fps from 128 Kbps
• SIF (352 x 240), CIF (352 x 288)
• From 64 kbps
• QCIF (176 x 144) from 64 kbps
• w288p from 128 Kbps
• w448 from 384 Kbps
• w576p from 512 Kbps |
| CONTENT VIDEO RESOLUTION | • Input
- UHD (3840 x 2160)
- HD (1920 x 1080p)
- WSXGA+ (1680 x 1050)
- UXGA (1600 x 1200)
- SXGA (1280 x 1024)
- WXGA (1280 x 768)
- HD (1280 x 720p)
- XGA (1024 x 768)
- SVGA (800 x 600)
• Output
- UHD (3840 x 2160)
- WUXGA (1920 x 1200)
- HD (1920 x 1080)
- WSXGA+ (1680 x 1050)
- SXGA+ (1400 x 1050)
- SXGA (1280 x 1024)
- HD (1280 x 720)
- XGA (1024 x 768)
• Content frame rate
- 5–60 fps (up to 4K resolution at 15 fps in call)
|
| CONTENT SHARING | • Poly Content App support
• Apple AirPlay
• Miracast
• 1x HDMI input |
| AUDIO INPUT | • Up to three 1x IP microphone arrays (20 ft pickup range each)
• Up to 4x Clink2 Microphones or SoundStructure (using Poly Microphone IP Adapter)
• 1x HDMI
• 1x 3.5 mm stereo line-in
• USB support for SHURE microphones |
| AUDIO OUTPUT | • 1x HDMI
• 1x 3.5 mm stereo line-out |
| OTHER INTERFACES | • 3x USB 3.0
• 1x USB-C1
• 1x RS-232, 8-pin mini-DIN
• Bluetooth 5.0
• WiFi 802.11a/b/g/n/ac (MIMO) Multichannel Concurrency |
| AUDIO STANDARDS AND PROTOCOLS | • 22 kHz bandwidth with Polycom Siren 22 technology
• 20 kHz bandwidth with G.719 (M- Mode) and Polycom Siren 22 technology
• 14 kHz bandwidth with Polycom Siren 14 technology, G.722.1 Annex C
• 7 kHz bandwidth with G.722, G.722.1
• 3.4 kHz bandwidth with G.711, G.728, G.729A |
| NETWORK | • IPv4
• IPv6
• 1x 10/100/1G Ethernet
• Auto-MDIX
• 3x 10/100/1G LLN supporting POE+/PSE
• H.323 and/or SIP up to 6 Mbps
• Polycom Lost Packet Recovery (LPR) technology
• Dynamic bandwidth allocation
• Reconfigurable MTU size
• RS232 with REST and CLI API support
• Web Proxy support—Basic, Digest and NTLM
• Simple Certificate Enrollment Protocol (SCEP) |
| SECURITY | • Media encryption (H.323, SIP): AES-128, AES-256
• H.235.6 support
• Authenticated access to admin menus, web interface and APIs
• PKI/Certificate Management:
- TLS 1.2, 1.1, 1.0
- Self-signed and CA-signed certificate support
- CRL and OCSP-based certificate revocation checking
• Local account password policy configuration
• Security profiles
• Local account and login port lockout
• Secure defaults
• Remote logging with support for TLS
• Active directory external authentication |
| OPTIONS | • Poly TC8
• Poly IP Table Microphone
• Poly Microphone IP Adapter
• EagleEye Cube USB
• EagleEye Director II
• EagleEye Producer |
| INTEROPERABILITY | • Support for Zoom Rooms, StarLeaf and GoToRoom
• All cloud service providers through Poly Video App mode
• USB Device Mode |
| ELECTRICAL | • Auto sensing power supply
• Typical operating voltage/power - 37VA @ 120V @ 60 Hz - 37VA @ 230V @ 50/60 Hz
• Typical BTU/h: 65 |
| ENVIRONMENTAL SPECIFICATION | • Operating temperature: 0 to 40 °C (32 - 104 °F)
• Operating humidity: 15 to 80%
• Non-operating temperature: -40 to 70 °C (-40 to 158 °F)
• Non-operating humidity (non-condensing): 5 to 95%
• Maximum altitude: 10,000 ft |
| PHYSICAL CHARACTERISTICS | • G7500 base box
- 13.75" L x 1.5" H x 5.5" D in (34.92 x 3.81x 13.97 cm)
- 2.1 lbs (.95 Kg)
|
| WARRANTY | • One-year return to factory parts and labor |
