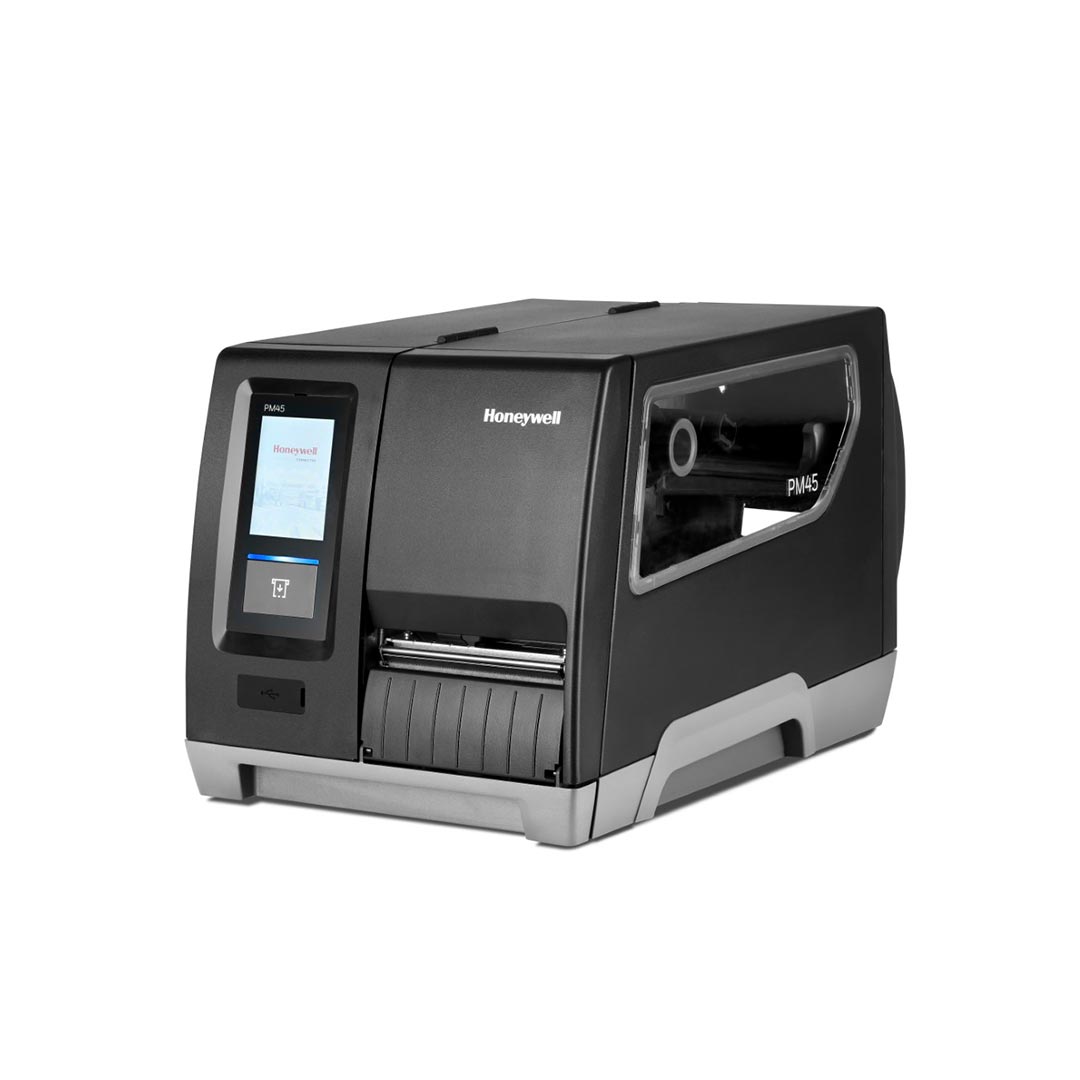

| Technical Specifications | PM45 |
| PHYSICAL CHARACTERISTICS | |
| L x H x W | 483 mm x 295mm x 284 mm (19.0 in x 11.11.6 in x 11.2 in) |
| Weight | 13.2 kg (29.1lbs) |
| PRINT SPECIFICATIONS | Max.Width at 203 dpi: 108 mm (4.25 in)
Max.Width at 300 dpi: 105.7 mm (4.17 in)
Max.Width at 406 dpi: 104 (4.09 in)
Max.Width at 600 dpi: 105.6 mm (4.16 in)
Max.length at 203 dpi: 4.8 m (189 in)
Max.length at 300 dpi: 2.2m (85in)
Max.length at 406 dpi: 1.2 m (47.2 in)
Max.length at 600 dpi: 0.55m (22in) |
| WIRELESS CONNECTIVITY |
| WLAN | IEEE 802.11 a/b/g/n/ac;
Wi-Fi certified, 1x1 SISO |
| Additional WLAN Features | 802.11d/e/h/i/k/r |
| Security | OPEN, WEP, WPA/WPA2
(Personal and Enterprise) |
| Supported EAP | TLS, PEAP, TTLS, PWD,
LEAP, FAST |
| Bluetooth | V5.0 Bluetooth and BLE
Supported |
| WWAN | WWAN Radio
CAT4 LTE Modem
MIMO - Main/Rx-diversity
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/
B13/ B18/B19/B20/B25/B26/B28
LTE TDD: B38/B39/B40/B41
UMTS: B1/B2/B4/B5/B6/B8/B19
GSM: B2/B3/B5/B8
Slot: Micro Sim Card slot x 1 |
| PRINT SPEED | At 203 dpi: 50-350 mm/s (2-14ips)
At 300 dpi: 50-300 mm/s (2-12ips)
At 406 dpi: 50-250 mm/s (2-10ips)
At 600 dpi: 50-150 mm/s (2-6ips) |
| PRINT RESOLUTION | At 203 dpi: 8 dots/mm
At 300 dpi: 11.8 dots/mm
At 406 dpi: 16 dots/mm
At 600 dpi: 23.6 dots/mm |
| MEDIA SPECIFICATION |
| Type | Labels and Tags and Linered media |
| Max./Min.Width | 114/19 mm (4.5/0.75 in) |
| Thickness | 3 mil to 10.4 mil |
| Configuration | Roll-fed or fan-fold |
| Media Sensing | Gap, Notch, Black mark,
Continous, Media low, Media end |
| Other sensing | Label Taken sensing,
Ribbon Low/End sensing, Head lift sensing |
| Label Roll Max.Diameter | 152 mm (6 in) for
PM45c long door models; 213 mm (8.38 in)
for all other models of PM45/PM45c |
| Label Roll Core ID | 38-76 mm (1.5-3 in) |
| RIBBON SPECIFICATION |
| Type | Wax, mid-range and resin |
| PM45 Roll Max. Diameter | 80 mm
(3.15 in), capacity of 450 m (1,476 ft) |
| PM45c Roll Max. Diameter | 61 mm
(2.40 in), capacity of 229 m (751 ft) |
| Media |
| Ribbon Core ID | 25mm (1 in) |
| INTERFACES |
| Standard | Ethernet 10/100/1000 Mbps
USB 2.0 Host (x2 PM45, x1 PM45C)
USB 2.0 Device
RS-232, up to 115.2 KB/s |
| Optional | Parallel Interface (IEEE 1284)
Industrial interface – eight digital
in/out, four analog relays, one
RS232/422/485 port
Applicator Interface – Ext Error 8-pin miniDIN, Z-style standard DB15 port, S-style
standard 14-pin Centronics, Ext Power
6-pin mini-DIN
RFID – Supports EPC Class 1 Gen2,
18000-6C. Radio configured to comply
with local UHF RFID regulations including
FCC and ETSI. Contact local representative
for availability in particular region |
| Supported Network Protocols | TCP/IP suite (TCP, UDP, ICMP, IGMP), LPR/LPD, Telnet/SSH, FTP/SFTP, BOOTP, DHCP, HTTP/HTTPS, SNMPv1/2c/3, SNMP-MIBII supported – over UDP/IP (private enterprise MIB included), SMTP Supports IPv4 and IPv6 |
| SOFTWARE |
| Printer Command Languages | Fingerprint (FP) Direct Protocol (DP) Intermec Printer Language (IPL)3 ZSim2 (ZPL-II), DPL, XML-enabled for SAP® AII and Oracle® WMS, PDF, C# |
| Applications/Drivers | InterDriver Windows® printer driver, CUPS driver for Linux, Honeywell Device Types
for SAP, Honeywell label design and print package |
| Smart Printing Languages | C# for Printers: Honeywell Smart Printing Developer Resource Kit; write apps with .NET- compatible development environments. |
Configuration and Device Management
Support (optional) | OpIntel - PrintSet 5 for printer configuration; sophisticated web interface for
configuration, upgrades and 1:1 management; Print Set MC (Android™ and
Apple® iOS) for printer configuration via Bluetooth LE only |
| BARCODES/FONTS/GRAPHICS |
| Barcode Symbologies | All major 1D and 2D
symbologies are supported |
| Standards Supported | UPC/EAN Shipping
Container, UCC/EAN 128, Serial Shipping
Container, MH10.8 Shipping Label, AIAG
(shipping parts label), OGMARS, POSTNET,
HIBCC, ISBT 128, GM1724, UPS Shipping
Label, Global Transport Label |
| FONTS | Monotype font engine
Non-Latin fonts available through WTLE |
| GRAPHICS | Supports PCX, PNG, GIFand
BMP file formats.
Other formats supported with Label
Generation Tools. |
| MEMORY | Standard: 512 MB Flash memory, 256 MB
SDRAM, Multi-GB USB memory device
(FAT16/FAT22)
User Partitioning: 256MB |
| USER INTERFACE | Full Touch UI, Icon UI |
USER INTERFACE LANGUAGES
On Full Touch LCD and Web Interface | English, Russian, German, French,
Portuguese, Spanish, Italian, Korean,
Thai, Japanese, Simplified and
Traditional Chinese |
| POWER SUPPLY |
| AC Voltage | 100 to 240V AC, 50 to 60 Hz |
| Power Consumption | Standby 9.6W; Peak
270W (24V), Peak 145W (33V) |
| OPERATING ENVIRONMENT |
| Ambient Operating Temperature | +5°C to +40°C (+41°F to +104°F) |
| Storage Temperature | -20°C to +70°C (-4°F to +152°F) |
| Operating Humidity | 20 to 85% non-condensing |
| Storage Humidity | 5 to 90% non-condensing |
| REGULATORY APPROVALS | RoHS Compliant, CE (EN55032 Class B*),
FCC Class B*, Energy Star 3.0 Qualified
For more countries compliant, please
contact your local sales office. |
| OPTIONS AND ACCESSORIES |
Consult the PM Series Accessory Guide
for full details | Integral self-strip unit with liner takeup,
label taken sensor (LTS), media low sensor,
media supply hub, parallel interface board,
RFID UHF, applicator interface board2,
industrial interface board1,2, collapsible
rewinder core, cutter, full batch
label/liner rewinder |
