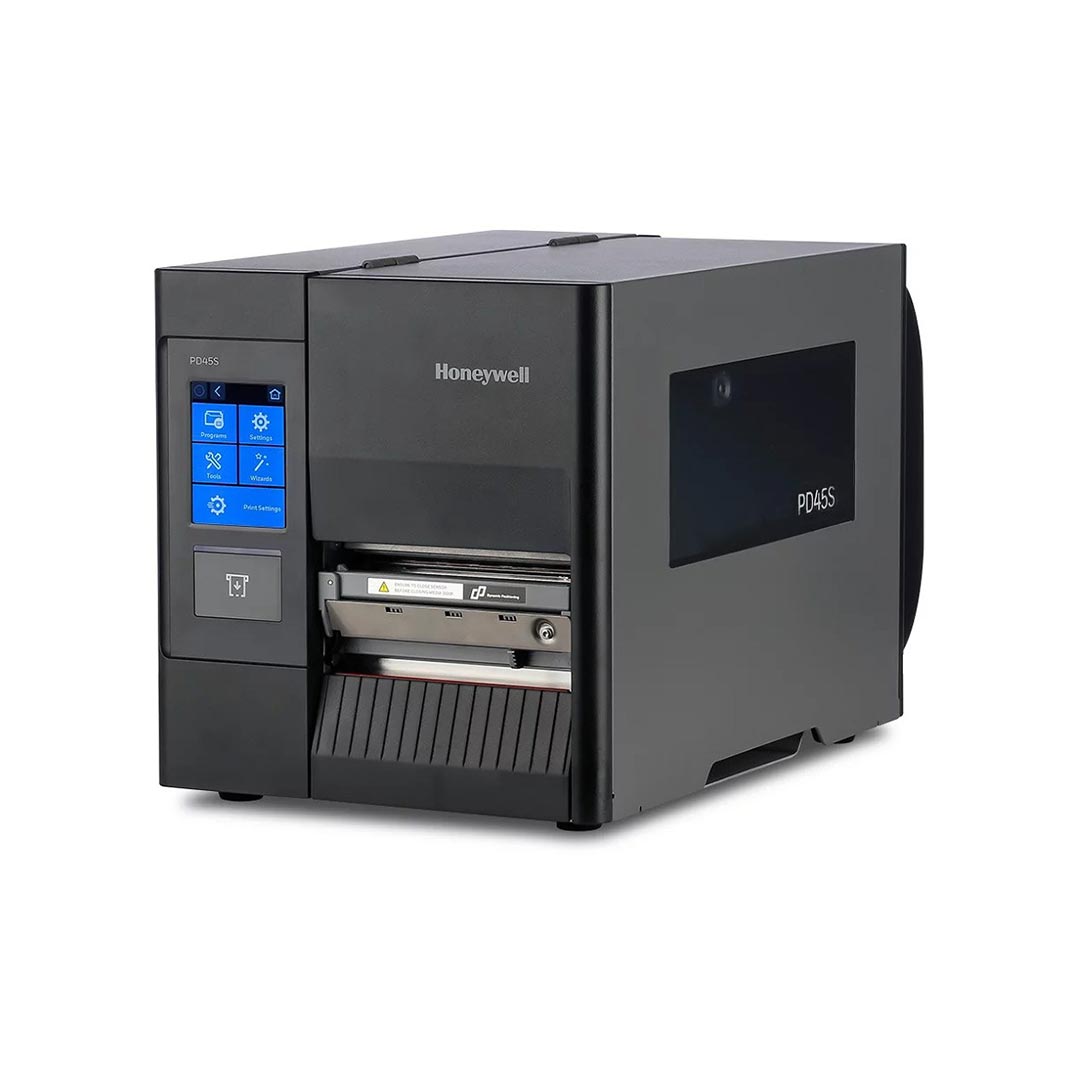

| Technical Specifications | HONEYWELL PD45 |
| GENERAL SPECIFICATION | | |
| Product models: | PD45S0F: 3.5” color touch control LCD
PD45S0C: 2.36” keyed LCD |
| Printing modes: | Direct thermal and thermal transfer Printing |
| Processors: | Arm Cortex®-A7, 800MHz
128 MB flash memory
128 MB DDR3 SDRAM
Multi-GB USB storage device (FAT16/FAT32)
Built-in real-time clock |
| PRINT SPECIFICATIONS | | |
| Printing resolution: | 203 dpi: 8 dots/mm
300 dpi: 11.8 dots/mm |
| Printing speed: | 203 dpi: 50 - 250 mm/s (2-10 ips)
300 dpi: 50 - 200 mm/s (2-8 ips) |
| Maximum width: | 203 dpi: 108 mm (4.25 inches)
300 dpi: 105.7 mm (4.16 inches) |
| Maximum Continuous Print Length: | 203 dpi: 4.8 m (15.75 inches)
300 dpi: 2.2 m (7.22 inches) |
| MECHANICAL | | |
| Dimensions (L x H x W): | L: 438 mm x 270 mm x 249 mm
(17.24 in x 10.63 in x 9.80 in)
Weight: 10.82 kg (23.85 lbs) |
| OPTIONS AND ACCESSORIES | • Wireless network interface card(optional)
• Parallel interface card
• Labeling machine interface card
• Industrial GPIO interface card
• Peeling and rewind assembly
• Cutter |
| RIBBON SPECIFICATIONS | | |
| Ribbon supporting: | Inner carbon or outer carbon |
| Maximum roll diameter: | 80 mm (3.15 inches), about 450 m (1,476 feet) |
| Roll core ID | 25.4 mm (1 inch) |
| Max. /Min. Width (ribbon and roll core): | 110/51 mm (4.33/2.0 inches) |
| Type | Wax base, mixed base and resin base |
| MEDIA SPECIFICATIONS | Non-continuous label paper, black label paper, tag
paper, guide hole paper, notch paper or continuous
label paper |
| Maximum/minimum width (label and
liner): | 114/20 mm (4.5/0.79 in) |
| Minimum label length: | Paper tearing mode: 5.0 mm (0.197 inches)
Self-peeling mode: 12.7 mm (0.5 inches)
Cutter Mode: 38.0mm (1.5 inches) |
| Thickness (label and liner): | 3 mil to 10 mil (0.076mm to 0.255mm) |
| Configuration: | External roll paper or folding paper |
| Maximum diameter of label roll: | 203.2 mm (8.0 inches) |
| Label roll core: | 76 mm (3.0 inches)/25.4mm (1.0 inches) |
| PRINT INTERFACES | | |
| Standard: | • USB 2.0 host interface
• USB 2.0 device interface
• Ethernet interface, transmission rate: 10/100 Mbps
• RS-232, transmission rate up to 115.2 KB/s |
| It supports the following serial port
protocols: | • Fingerprint/Direct Protocol: XON/XOFF, ENQ/ACK,
RTS/CTS
• IPL: XON/XOFF, Honeywell Std. Protocol |
| Optional: | • WIFI: IEEE 802.11 a/b/g/n/ac, Static WEP (64
bit and 128 bit), Dynamic WEP (TLS, TTLS, PEAP,
LEAP, EAP-FAST), WPA (THIP/CCKM Personal and
Enterprise, WPA2 (AES-CCMP/CCKM Personal and
Enterprise)
• Parallel port: IEEE 1284
• Industrial interface: 8-bit INPUT/output, 4 analog
signal relays and 1 RS-232/422/485 port
• Dual serial ports: RS-232, RS-422 and RS-485, and
20 mA current loop, GPIO card |
| OPERATING ENVIRONMENT | | |
| Operating temperature: | +5°C to +40°C (+41°F to +104°F) |
| Storage temperature: | -20°C to +70°C (-4°F to +158°F) |
| Humidity: | 20% to 85%, non-condensing |
| APPROVALS | CB \ CE; for more compliance information, please
contact your local sales representative. |
| BARCODES/FONTS/GRAPHICS | | |
| Barcodes: | Supporting all main 1D and 2D symbols |
| Supporting standards: | UPC/EAN Shipping Container, UCC/EAN 128,
Serial Shipping Container, MH10.8 Shipping Label,
AIAG (shipping parts label, OGMARS, POSTNET,
HIBCC, ISBT 128, GM1724, UPS Shipping Label
and Global Transport Label |
| Font: | Monotype font engine; non-Latin fonts can be
supported through WTLE, and customers can also
download (Truetype) fonts by themselves. |
| Graphics: | It supports PCX, PNG, GIF and BMP file formats.
Other formats can be supported by Label
Generation Tools. |
| SOFTWARE | | |
| Printer command languages: | Fingerprint (FP), Direct Protocol (DP), IPL, ZSim2
(ZPL-II), DPL; XML can be enabled for SAP AII and
Oracle WMS; |
| Application programs /Driver programs: | InterDriver Windows printer drive and one-key
installation driver, CUPS driver for Linux, program
packages for Honeywell device type for SAP and
Honeywell label design and printing |
| SMART PRINTING languages: | Honeywell’s special C# languages for printers:
Smart Printing Developer Resource Kit; write
application in the development environment
compatible with .NET. |
| Configuration and equipment
management support: | Printset supports Windows to configure printers;
the mature Web interface is used for configuration
and one-to-one management
SAP, Oracle, Linux and Windows are trademarks or
registered trademarks of their respective owners. |
