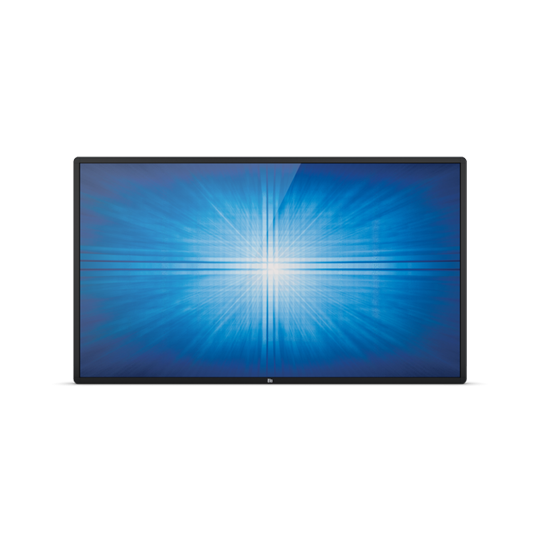

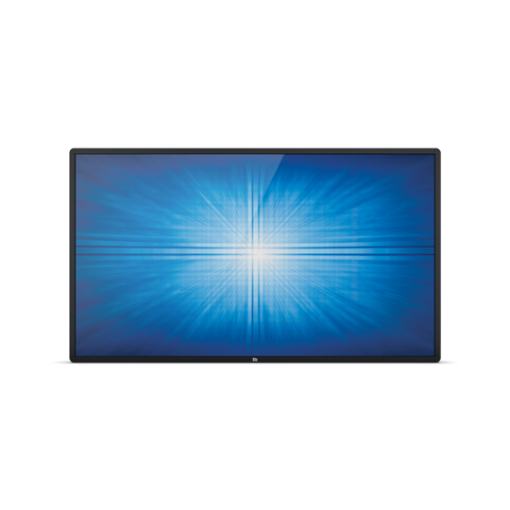

Specifications |
| Part Number(s) | Infrared 20-touch - E183504 |
| Enclosure Color | Black |
| Touch Technology & Capacity | Infrared - 20 Touch |
| Touch Interfaces | USB |
| Diagonal Size | 69.5'' diagonal, Active matrix TFT LCD (LED) |
| Active Area (mm) | 60.6" x 34.0" / 1538.9mm x 865.6mm |
| Aspect Ratio | 16:9 |
| Resolution | Full HD 1920 x 1080 |
| Viewing Angle | Horizontal: ±88° or 176° total / Vertical: ±88° or 176° total |
| Number of Colors | 16.7 million |
| Brightness (typical) | LCD Panel: 700 nits
IR: 630 |
| Response Time-total (typical) | 8 msec |
| Contrast Ratio | 5000:1 |
| On Screen Display | Controls: Menu, Up, Down, Select, Power
Settings: Brightness, Contrast, Clock, Phase, Auto-Adjust, H-position, V-position, Maintain Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Mounting, OSD H-Position, OSD V-Position, Volume, Mute, Recall Defaults, Video Source, Audio Source
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, Power
Information, MDC Protocol, Support and Help, System Temperature and Exit
Accessible through switches on the unit's tethered OSD control box. |
| Input Video Frequency | Horizontal: 31.5 - 73 KHz
Vertical: 47 - 63 Hz |
| Audio Input Connector | 3.5 mm TRS jack |
| Audio Input Signal Range | 1Vrms max stereo signal (standard PC line out) |
| Headphone Output Connector | 3.5 mm TRS jack |
| Speakers | 4 x 5 W stereo speakers |
| Audio Input Signal Range | 1Vrms max stereo signal (standard PC line out) |
| Power Supply | AC internal |
| Input Connector | IEC 60320 C14 |
| Input Voltage | 100 - 240 VAC 50/60Hz |
| Maximum Operating Time | 24/7 |
| Power Consumption (Typical) | Monitor Only - Typical @ 110V/60Hz:
ON: 215W
SLEEP: 12.5W
OFF: 1.5W
Monitor Only - Typical @ 230V/50Hz:
ON: 211.0W
SLEEP: 12.5W
OFF: 2.0W |
| Dimensions | 63" x 3.7" x 36.4" / 1600mm x 94mm x 925mm |
| Shipping Box Dimensions | Box #1: 70.6" x 15.2" x 45.2" / 1794mm x 386mm x 1149mm Box #2: 69.7" x 14.4" x 10.2" / 1772mm x 365mm x 260mm |
| Weight (Unpackaged) | Monitor Only: 149.5 lbs / 67.8 kg
Monitor with Computer Module: 154.35 lbs / 70 kg |
| Weight (Packaged) | Monitor Only: 201.5 lbs / 91.4 kg (packaged with pallet) |
| Operating Temperature | 0°C to 40°C / 32°F to 104°F |
| Storage Temperature | -20°C to 50°C / -4°F to 122°F |
| Humidity | Operating: 20% to 80%
Storage: 10% to 95% |
| Mounting Options | VESA 4-hole mount per MIS-F, 600, 600, 8mm |
| MTBF | 50,000 hours demonstrated
|
