Specifications |

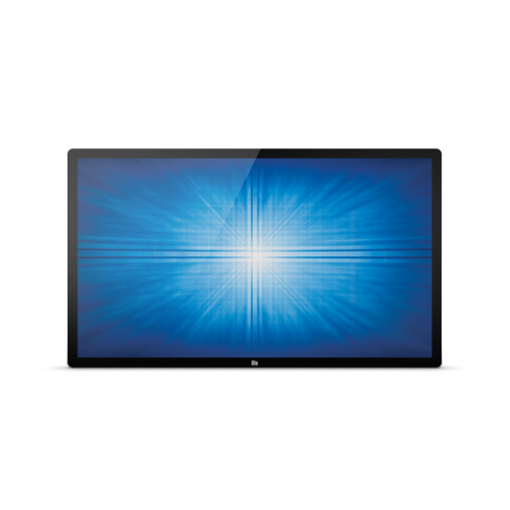

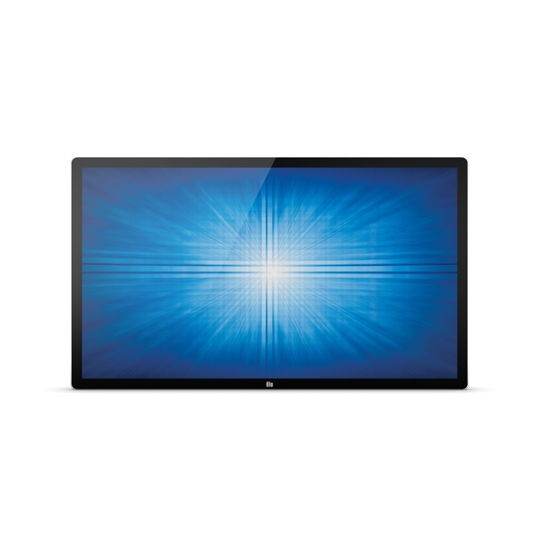

| Part Number(s) | Infrared - E222370 |
| Enclosure Color | Black |
| Touch Technology & Capacity | PCAP (TouchPro® Projected Capacitive) - 12 Touch
Infrared - 20 Touch |
| Touch Interfaces | USB |
| Diagonal Size | 46'' diagonal, Active matrix TFT LCD (LED) |
| Active Area (mm) | 40.08" x 22.55" / 1018.08mm x 572.67mm |
| Aspect Ratio | 16:9 |
| Resolution | 1920 x 1080 @ 60hz |
| Viewing Angle | Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total |
| Number of Colors | 16.7 million |
| Brightness (typical) | LCD Panel: 500 nits
IR: 450
PCAP: 430 nits |
| Response Time-total (typical) | 6.5 msec |
| Contrast Ratio | 4000:1 |
| I/O Ports | Input: AC power input, USB type B (for Touch), VGA, 2x HDMI, GPIO, DisplayPort, Audio Line in
Output: Audio Headphones out, RJ45 (for optional OSD remote) |
| Input Video Frequency | Horizontal: 31.5 - 73 KHz
Vertical: 47 - 63 Hz |
| Audio Input Connector | 3.5 mm TRS jack |
| Audio Input Signal Range | 1Vrms max stereo signal (standard PC line out) |
| Headphone Output Connector | 3.5 mm TRS jack |
| Speakers | 4 x 5 W stereo speakers |
| Power Supply | AC internal - Replacement power cables are available with the purchase of a replacement cable kit - Elo P/N: E060080 |
| Input Connector | IEC 60320 C6 |
| Input Voltage | 100 - 240 VAC 50/60Hz |
| Maximum Operating Time | 24 hours/day |
| Power Consumption (Typical) | Monitor Only
(Typical at 120V at 60Hz): ON: 95.0 W; SLEEP: 8.7 W; OFF: 2.5 W
(Typical at 230V at 50Hz): ON: 96.0 W; SLEEP: 8.0 W; OFF: 2.8 W
Monitor with ECMG3
(Typical at 120V at 60Hz): ON: 106 W; SLEEP: 11.3 W; OFF: 11.0 W
(Typical at 230V at 50Hz): ON: 107.0 W; SLEEP: 11.2 W; OFF: 11.0 W |
| Dimensions | IR: 42.63" x 25.09" x 2.43" / 1082.8mm x 637.4mm x 61.6mm
PCAP: 42.63" x 25.09" x 2.02" / 1082.8mm x 637.4mm x 51.3mm |
| Shipping Box Dimensions | 48.03" x 8.27" x 29.53" / 1220mm x 210mm x 750mm |
| Weight (Unpackaged) | IR:
With ECMG3: 59.19lbs / 26.85 Kg
Without ECMG3: 52.58 lbs / 23.85 Kg
PCAP
With ECMG3: 59.55 lbs / 27.01 Kg
Without ECMG3: 52.93 lbs / 24.01 Kg |
| Weight (Packaged) | IR:
Without ECMG3: 67.79 lbs / 30.75 Kg
PCAP
Without ECMG3: 68.10 lbs / 30.89 Kg |
| Operating Temperature | Portrait/Landscape Mode: 0°C to 40°C / 32°F to 104°F
Table top Mode and with Intel OPS modules: 0° C to 35° C OR 32°F to 95°F |
| Storage Temperature | -20°C to 60°C / -4°F to 140°F |
| Humidity | Operating: 20% to 80%
Storage: 10% to 95% |
| Mounting Options | VESA mount per MIS-F, 400, 400, 6MM |
| Sealability | Touchscreen sealed to bezel
Touchscreen sealed to LCD |
| MTBF | 50,000 hours demonstrated
|
| Warranty | 3-year |
| Regulatory approvals and declarations | UL, FCC (US) - Class A
cUL, IC (Canada)
CB (International safety)
CE (Europe) - Class A
CCC (China)
EAC (Russia)
VCCI (Japan) |
| RFID Supported Protocols | ISO - 14443-A
ISO - 14443-B
ISO – 15693 |
| What's in the Box | HDMI cable (Type A plug to Type A plug), USB cable (Type A plug to Type B plug), power cable, IEC 60320-C5 to NA plug power cable, IEC 60320-C5 to EU/KR plug power cable, IEC 60320-C5 to UK plug, 3.5mm Audio Cable, Energy label according to EU Regulation |
| IDS Optional Accessories | Barcode Reader – Elo P/N: E093433
Elo Backpack® - Elo P/N: E611864
Elo Backpack® 3.0 - Elo P/N: E901355
2D Barcode Scanner – Elo P/N: E926356
Magnetic Stripe Reader – Elo P/N: E001002
NFC/RFID Reader – Elo P/N: E001004
Wallmount for IDS 02 Series – Elo P/N: E275050
Webcam for IDS 02 Series – Elo P/N: E275233
EMV Cradle for Ingenico ICMP (X-Series & IDS 02-Series) - Elo P/N: E200788
EMV Cradle for Verifone E355 (X-Series & IDS 02-Series) - Elo P/N: E201363
EMV Cradle for MagTek eDynamo - Elo P/N: E375343
EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981
EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930
Fingerprint Reader (FPR) – Elo P/N: E001001
ECM Power Connector Module for IDS 02 Series – Elo P/N: E275433
Stand for IDS 02 Series - Elo P/N: E275623
IDS Side-mount Brackets - Elo P/N: E329508
Wired OSD Remote - Elo P/N: E483757
ECMG2C Android Computer Module Kit for IDS 02 Series - Elo P/N: E336899
OPS adaptor kit for IDS 02 Series - Elo P/N: E337104
Note: All ELO-KIT-ECMG2C include the E275433 ECM Power Connector Module for IDS02
i3-6100 ECMG3 with No OS - Elo P/N: E400587
i3-6100 ECMG3 with Windows 7 - Elo P/N: E400775
i3-6100 ECMG3 with Windows 10 - Elo P/N: E400965
i5-6500 ECMG3 with No OS - Elo P/N: E401168
i5-6500 ECMG3 with Windows 7 - Elo P/N: E401365
i5-6500 ECMG3 with Windows 10 - Elo P/N: E401558
i5-6500 ECMG3 with Windows 10 (256 GB SSD & 8GB RAM) - Elo P/N: E458919
i5-6500 ECMG3 with Windows 10 and DisplayNote Montage Software - Elo P/N: E343989
i7-6700 ECMG3 with No OS - Elo P/N: E401764
i7-6700 ECMG3 with Windows 7 - Elo P/N: E401962
i7-6700 ECMG3 with Windows 10 - Elo P/N: E402161
i7-6700 ECMG3 with Windows 10 (256 GB SSD) - Elo P/N: E459109
Note: All ECMG3 Kits include the E275433 ECM Power Connector Module for IDS02
Replacement Cable Kit - Elo P/N: E060080
Collaboration Tray - Elo P/N: E477238 |
