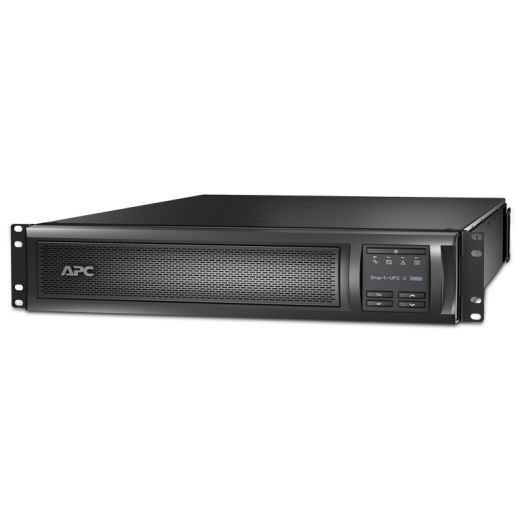

APC SMX3000RMHV2U Smart-UPS X 3000VA Rack/Tower LCD 200-240V

Key Features

• Output power capacity 2.7kWatts / 3.0kVA
• Rack Height 2U
• Output Connections (1) IEC 320 C19 (Battery Backup) (8) IEC 320 C13 (Battery Backup) (2) IEC Jumpers (Battery Backup)
• Nominal Output Voltage 230V
• Nominal Input Voltage 208V, 230V
• Input Connections IEC-320 C20, Schuko CEE 7 / EU1-16P, British BS1363A Cord Length 1.83meters

APC Smart-UPS X 3000VA Rack/Tower LCD 200-240V

• Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
• Includes: CD with software, Documentation CD, Rack Mounting Brackets, Smart UPS signalling RS-232 cable, USB cable, User Manual

Output

• Max Configurable Power (Watts) 2.7kWatts / 3.0kVA
• Output Voltage Distortion Less than 5%
• Output Frequency (sync to mains) 50/60Hz +/- 3 Hz
• Other Output Voltages 208, 220, 240
• Load Crest Factor 3 : 1
• Topology Line Interactive
• Waveform type Sine wave
• Transfer Time 2-4 ms Transfer Time 6ms typical : 10ms maximum

Input

• Input frequency 50/60 Hz +/- 3 Hz (auto sensing)
• Input voltage range for main operations 140 - 280V
• Number of Power Cords 1
• Other Input Voltages 220, 240
• Transfer Time 2-4 ms

Batteries & Runtime

• Battery type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
• Typical recharge time 3hour(s)
• Replacement Battery APCRBC117
• Expected Battery Life (years) 3 - 5
• RBC Quantity 1
• Extendable Run Time 1
• Battery Volt-Amp-Hour Capacity 738
• Extended Run Options APC-Smart-UPS-X-3000VA-Rack-Tower-LCD-200-240V

Communications & Management

• Interface Port(s) RJ-45 Serial, SmartSlot
• Control panel LED status display with On Line : On Battery : Replace Battery and Overload indicators, Multi-function LCD status and control console
• Audible Alarm Alarm when on battery : distinctive low battery alarm : configurable delays
• Emergency Power Off (EPO) Yes
• Available SmartSlot™ Interface Quantity 1

Surge Protection and Filtering

• Surge energy rating 645Joules
• Filtering Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

• Maximum Height 85MM, 8.5CM
• Maximum Width 432MM, 43.2CM
• Maximum Depth 667MM, 66.7CM
• Net Weight 37.32KG
• Shipping weight 45.36KG
• Shipping Height 243MM, 24.3CM
• Shipping Width 596MM, 59.6CM
• Shipping Depth 869MM, 86.9CM
• Color Black
• Pallet Dimensions 39.369999999999997inches

           # of Layers per Pallet 4.0

           # of Units per Layer per Pallet 2.0

• Pallet Weight 855.12lbs.
• Units per Pallet 8.0

Environmental

• Operating Temperature 0 - 40 °C
• Operating Relative Humidity 0 - 95 %
• Operating Elevation 0-3000meters
• Storage Temperature -15 - 45 °C
• Storage Relative Humidity 0 - 95 %
• Storage Elevation 0-15000meters
• Audible noise at 1 meter from surface of unit 55.0dBA
• Online thermal dissipation 184.0BTU/hr

Conformance

• Approvals CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, UL 1778, VDE
• Standard warranty 3 years repair or replace (excluding battery) and 2 year for battery, optional on-site warranties available, optional extended warranties available

Sustainable Offer Status

• RoHS Compliant REACH
• REACH: Contains SVHCs
• PEP Available in Documentation tab
• EOLI Available in Documentation tab
• Proposition 65 Warning Available in Documentation tab
