Specification |
MODEL NAME |

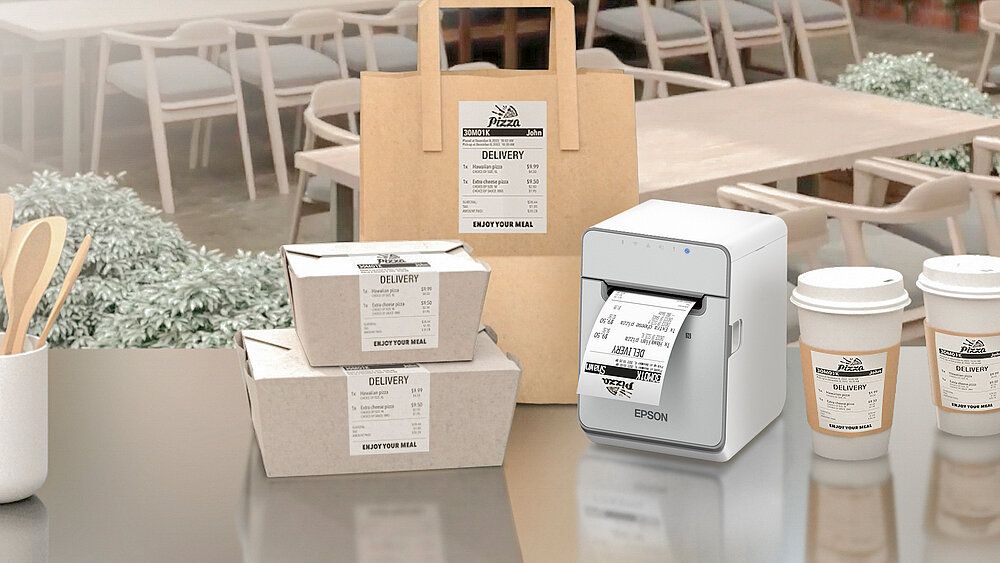

TM-L100 |
Print Technology |
Printing Method |
Thermal Line Printing |
Print Font |
Font |
ANK: 12 x 24 (default) / 9 x 17; Kanji Font: 24 x 24 / 20 x 24; |
Character Set |
95 Alphanumeric, 18 set International, 128 x 43 graphics |
Barcode Standards |
Bar code: UPC-A, UPC-E, JAN8 / EAN 8, JAN13 / EAN13, Code39, Code93, Code128, Code 128 auto, ITF, CODABAR (NW-7), GS1-128, GS1 DataBar 2D Symbol: PDF417, QR code, Maxi Code, Data Matrix, Aztec, Two-dimensional GS1 DataBar, Composite Symbology |
Supported Language |
ANK + Arabic*1 + Simplified Chinese + Traditional Chinese + Korean + Japanese (Unicode support*2) |
Interface |
Serial Model |
Serial, Ethernet, USB B x 1 |
Receive Data Buffer |
4 KB |
Print Speed |
Thermal Receipt 170 mm/s |
Liner-Free Label 170 mm/s |
Dot / Line |
552 dots (80mm), 420 dots (58mm), 280 dots (40mm) |
Dot / Inch |
203 x 203 dpi |
Paper |
Dimensions (mm) |
Roll Paper: 79.5 ± 0.5 (W) × Dia. 103 mm 57.5 ± 0.5 (W) × Dia. 103 mm 39.5 ± 0.5 (W) × Dia. 103 mm |
Power |
Operating Voltage |
DC 24 V ± 7 % |
Power Consumption |
Serial ModelOperating: 43.2 W / Standby: 2.4 W |
Operating Temperature |
5 - 45° C (41 - 113° F) |
Humidity |
10 - 90% RH |
Power Supply |
AC Adapter (Model: PS-190) |
Reliability |
Thermal Paper |
Liner-Free Label |
Printer Mechanism Life |
20 million lines |
10 million lines |
Auto Cutter Life |
2 million cuts |
1 million cuts |
MTBF |
360,000 hours |
360,000 hours |
MCBF |
70 million lines |
35 million lines |
Colour |
Epson Black (EBCK) |
Dimensions |
Landscape Placement (W X D X H) 140 x 207 x 148.5 mm |
Vertical Placement(W X D X H) 140 x 148.5 x 207 mm |
Weight |
Approx. 1.9 Kg |
General Information |
LED Indicators |
Blue LED - Power, Interfaces (Ethernet) Orange LED - Error and/or Paper Out |
Sensor |
Paper End, Cover Open |
Built-in Features |
Status Notification, Server Direct Print*3 |
Printer Driver |
Windows Driver (APD), OPOS, OPOS.NET, JavaPOS (Windows, Linux), TM Virtual Port Driver, ePOS SDK (iOS, Android, Javascript), TM-Print Assistant (Android, iOS) |
Utility Tools |
TM-L100 Utility (Windows), Deployment Tool, Monitoring Tool, Epson TMUSB Identifier Utility, Firmware Updater |
What's in the Box |
AC Adapter & Cable (PS-190), 58mm paper guide, 40mm paper guide, Setup guide, User Manual, Rubber Foots, Fixing Tape, Locking Wire Saddle |
