| Standard Features |
• Print methods: direct-thermal or thermal-transfer
• Construction: metal frame and plastic enclosures
• Bi-fold media door with large clear window
• Side-loading supplies path for simplified media and ribbon loading
• Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality
• Five color LEDs for quick printer status
• Three button keypad
• Communications: USB 2.0 and RS-232 Serial port, 10/100 Ethernet, and USB Host
• ENERGY STAR® certified
• Bluetooth® Low Energy
• ZebraDesigner Essentials – easy label design tool free at
www.zebra.com/zebradesigner |
| Physical Characteristics |
|
| Dimensions |

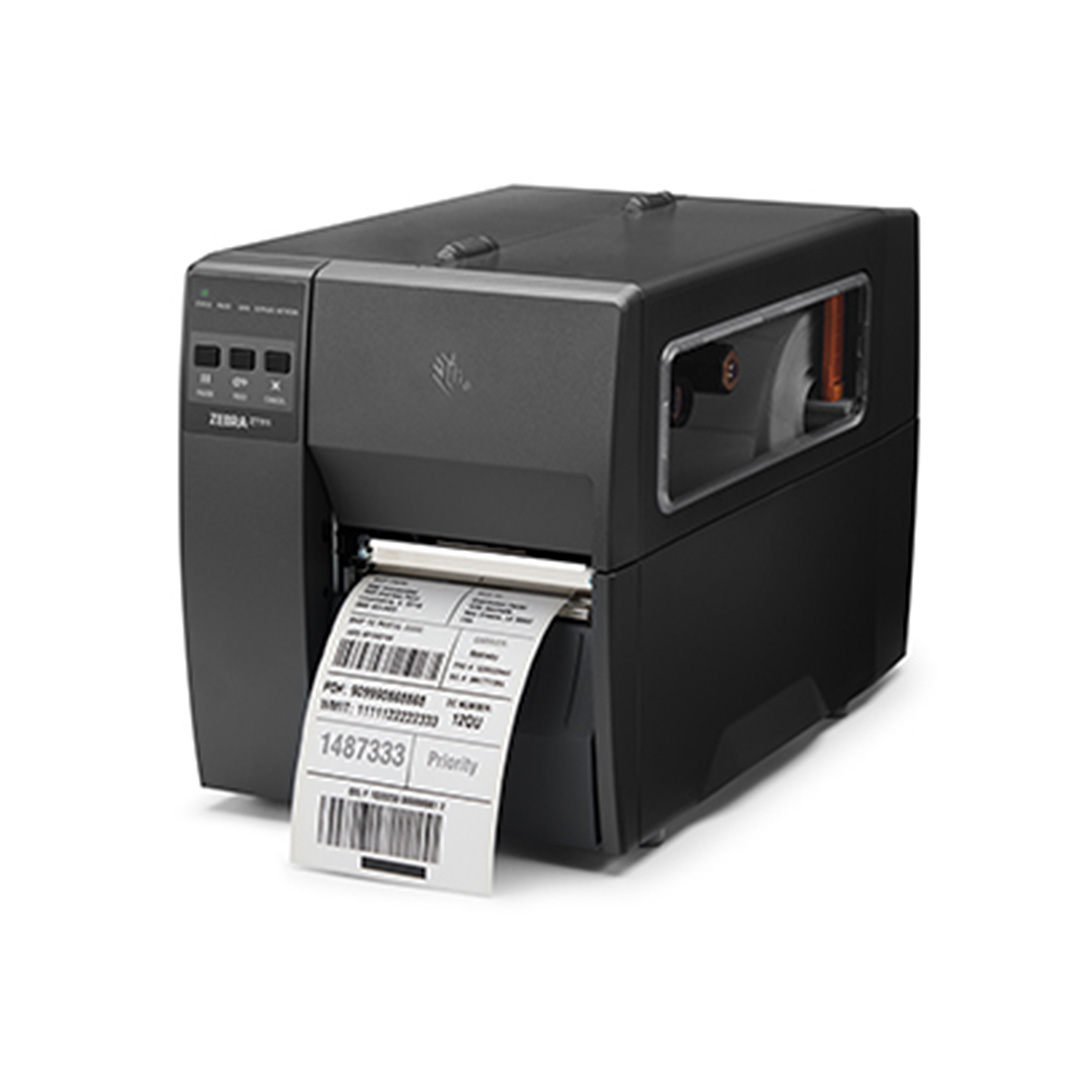

ZT111 Closed: 17 in. L x 9.5 in. W x 11 in. H
432 mm L x 241 mm W x 279 mm H |
| Weight |
ZT111: 17 lbs./7.7 kg |
| *Dimensions are for the base model printer. Consult your sales representative for specifics regarding other configurations. |
|
| Printer Specifications |
|
| Resolution |
203 dpi/8 dots per mm
300 dpi/12 dots per mm (optional) |
| Memory |
256 MB SDRAM memory
256 MB on-board linear Flash memory |
| Maximum Print Width |
4.09 in./104 mm |
| Maximum Print Speed |
10 ips (200 dpi)
6 ips (300 dpi) |
Media Sensors
|
Transmissive and reflective sensors
|
Maximum Print Length
|
203 dpi: 157in./3988 mm
300 dpi: 73in./1854 mm |
Media Characteristics
|
|
Minimum Label and
Liner Length |
Tear mode: 0.7 in/18 mm
Cutter mode: 1 in/25 mm
Peel mode: 0.5 in/13 mm
|
| Media Width |
0.75 in./19.4 mm to 4.50 in./114 mm |
Media Roll Size
|
8.0 in./203 mm O.D. on a 3.0 in./76 mm I.D. core
6.0 in./152 mm O.D. on a 1.0 in./25 mm I.D. core |
Media Thickness
|
0.003 in./0.076 mm to 0.010 in./0.25 mm |
Media Types
|
Continuous, die-cut, notch, black mark
|
| Ribbon Characteristics (Thermal-transfer option only) |
|
| Standard Length |
1,476 ft./450 m |
| Width |
2 in./51 mm to 4.33 in./110 mm |
Core
|
1.0 in./25.4 mm
|
Operating Characteristics
|
|
Operating Temp.
|
Thermal transfer: 40ºF to 105ºF/5º to 40ºC
Direct thermal: 32ºF to 105ºF/0º to 40ºC
|
Storage/Transportation
Temperature
|
-40ºF to 140ºF/-40º to 60ºC
|
Operating Humidity
|
20% to 85% non-condensing
|
Storage Humidity
|
5% to 85% non-condensing
|
Electrical
|
Universal auto-ranging (PFC-compliant) power supply 100-240 VAC; 50-60 Hz
ENERGY STAR certified
|
Agency Approvals
|
IEC 62368-1, EN55022 Class B, EN55024, EN55035, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus, CE Marking, UKCA, VCCI, RCM, S- Mark, CCC, CU EAC, BSMI, KCC, and BIS
|
Print DNA™ Basic Software
|
This printer is supported by our Print DNA Basic suite of software capabilities to get your printer up and running quickly, deliver a dependable print experience and enable your printer to evolve with your business needs. Print DNA features may vary by model, and some features may require a license. For more information, please visit
www.zebra.com/printdna
|
Firmware
|
ZBI 2.0™ — Optional powerful programming language that lets printers run stand-alone applications, connect to peripherals, and much more.
ZPL and ZPL II™ — Zebra Programming Language provides sophisticated label formatting and printer control and is compatible with all Zebra printers.
EPL and EPL2™— Eltron Programming Language simplifies label formatting and enables format compatibility with legacy applications. (EPL available on 203 dpi models only.)
|
Barcode Symbologies
|
Linear Barcodes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN with 2 or 5 digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code
2D Barcodes: Aztec, Codablock, PDF417, Code 49, Data Matrix, MaxiCode, QR Code, MicroPDF417, TLC 39, RSS-14 (and composite)
|
Fonts and Graphics
|
7 bitmapped, 1 smooth-scalable (CG Triumvirate™ Bold Condensed*) Pre-loaded Unicode™-compliant scalable fonts for EMEA character sets International character sets supporting the following code page: IBM® Code Page 850
Supports user-defined fonts and graphics, including custom logos ZPL II drawing commands including boxes and lines 64 MB user available Flash memory storage for downloadable objects; 32 MB user-available SDRAM
|
Options and Accessories
|
Communication
• 802.11ac Wi-Fi option card
• 10/100 Ethernet option card
Media Handling
• Peel — a front-mount, passive-peel with no take-up spindle
• Cutter — a front-mount guillotine cutter
Keyboard Display Unit
• ZKDU™ keyboard display units for stand-alone printing applications
|
