| Specification |

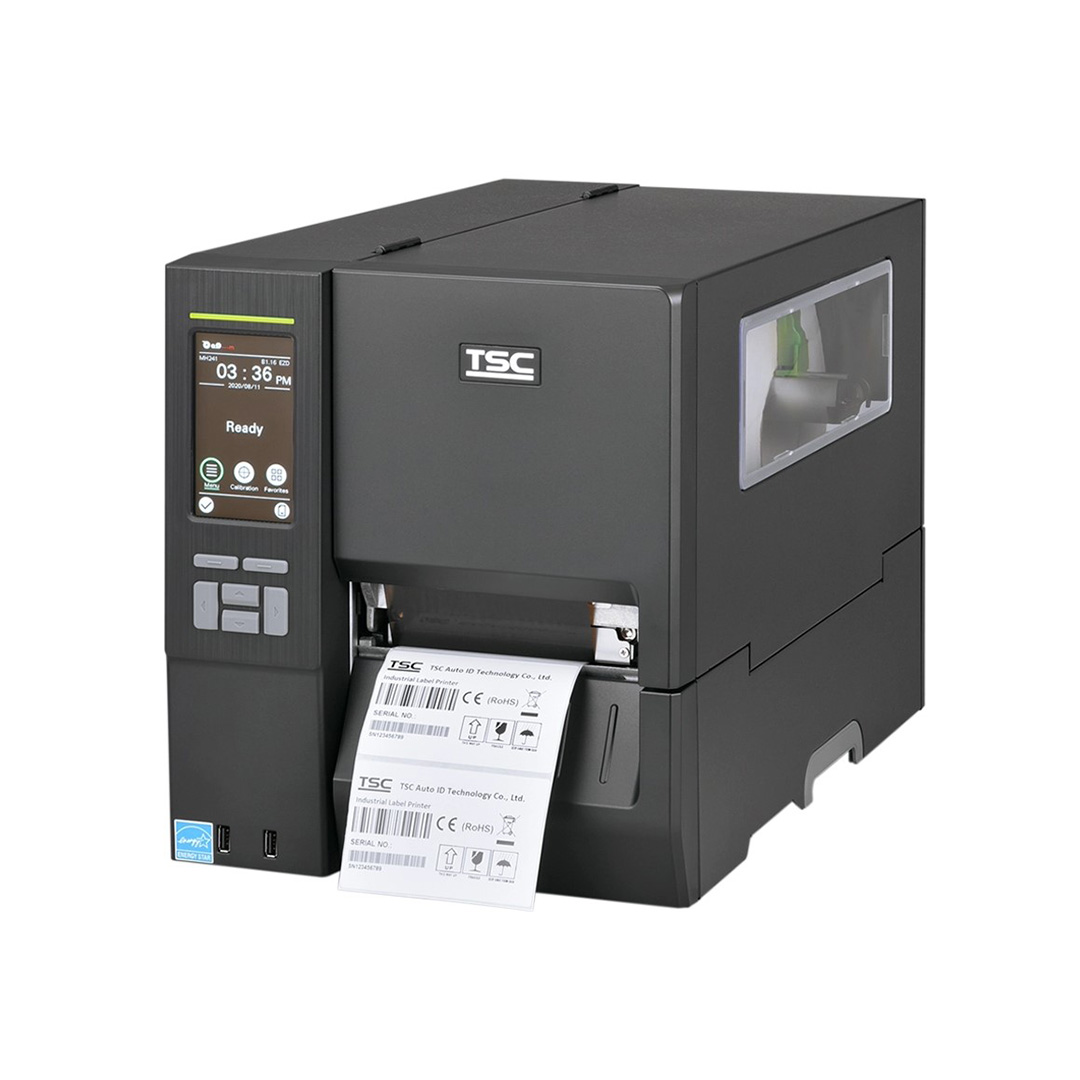

MH641T |
| Resolution |
24 dots/mm (600 DPI) |
| Printing method |
Thermal Transfer and Direct Thermal |
| Max. print speed |
152 mm (6”)/second |
| Max. print width |
104 mm (4.09”) |
| Max. print length |
2540 mm (100”) |
| Enclosure |
Die-cast print mechanism and base with bi-fold metal cover with large clear media view window |
| Physical dimension |
276 mm (W) x 326 mm (H) x 502 mm (D)
10.87” (W) x 12.83” (H) x 19.76” (D) |
| Weight |
15.70 kg (34.61 lbs) |
| Label roll capacity |
203.2 mm (8”) O.D. |
| Internal rewinder (full roll) |
Internal rewinding kit (5” O.D.) (dealer option) |
| Ribbon |
600 m long, max. O.D. 90 mm, 1” core (ink coated outside or inside) |
| Ribbon width |
25.4 mm ~ 114.3 mm (1” ~ 4.5”) |
| Processor |
32-bit RISC CPU |
| Memory |
• 512MB Flash memory
• 256MB SDRAM
• microSD Flash memory card reader for Flash memory expansion, up to 32 GB |
| Interface |
• RS-232
• USB 2.0 (High speed mode)
• Internal Ethernet, 10/100 Mbps
• USB host *2 (Front side), for scanner or PC keyboard
• GPIO (DB15F) + Centronics (factory option)
• Internal Bluetooth 5.0 MFi (factory option)
• Slot-in 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 4.2 combo module (dealer option) |
| Power |
Internal switching power supply
• Input: AC 100-240V, 4-2A, 50-60Hz
• Output: DC 5V, 5A; DC 24V, 7A; DC 36V, 1.4A; Total 243W |
LCD display/
Operation buttons |
• Multi-language selectable
• 6 operation buttons
• 1 LED (with 2 LEDs Green & Red) |
| LCD |
4.3” color display, 480 x 272 pixel; Resistive touch screen |
| Sensors |
• Gap transmissive sensor (position adjustable)
• Black mark reflective sensor (Bottom or Top black mark sensor switchable and position adjustable)
• Head open sensor
• Ribbon encoder sensor
• Ribbon end sensor
• Media near end sensor |
| Real time clock |
Standard |
| Internal font |
• 8 alpha-numeric bitmap fonts
• Monotype Image® true type font engine with CG Triumvirate Bold Condensed scalable font |
| Barcode |
1D barcode
Code 39, Code 93, Code128UCC, Code128 subsets A.B.C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A,
UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, RSS-Stacked, GS1 DataBar, Code 11, China Post
2D barcode
PDF-417, Maxicode, DataMatrix, QR code, Aztec |
| Font & barcode rotation |
0, 90, 180, 270 degree |
| Printer language |
TSPL-EZD (Compatible to EPL, ZPL, ZPL II, DPL |
| Media type |
Continuous, die-cut, black mark (Bottom side or top side black mark), fan-fold, notch, perforated, tag, care label
(outside wound) |
| Media width |
20 ~ 114 mm (0.79" ~ 4.5") |
| Media thickness |
0.06 ~ 0.28 mm (2.36 ~ 11 mil) |
| Media core diameter |
3.81 mm / 76.2 mm (1.5”/ 3”) |
| Label length |
5 ~ 11,430 mm (0.20” ~ 450”) |
| Environment condition |
• Operation: 0 ~ 40˚C (32 ~ 104˚F), 25~ 85% non-condensing
• Storage: -40 ~ 60 ˚C (-40 ~ 140˚F), 10~ 90% non-condensing |
| Safety regulation |
FCC Class A, CE Class A, RCM Class A, UL, cUL, TÜV, CCC, KC, BIS, BSMI, EAC, Argentina S mark, Mexico CoC,
ENERGY STAR® |
| Environmental concern |
Comply with RoHS, WEEE |
| Accessories |
• Windows labeling software CD disk
• Quick start guide
• USB port cable
• Power cord |
| RTC & Buzzer |
Standard |
| Limited warranty |
• Printer: 2 years
• Print head: 25 km (1 million inches) or 12 months which comes first
• Platen: 50 km (2 million inches) or 12 months which comes first |
| Factory option |
• GPIO (DB15F) + Parallel interface
• Internal Bluetooth 5.0 MFi* |
| Dealer option |
• Regular cutter (full cut guillotine cutter)
• Heavy-duty cutter (full cut guillotine cutter)
• Care label cutter
• 1” I.D. core media spindle
• 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 4.2 combo module
(including slot-in housing) *
• Peel-off kit
• Internal rewinder kit (5” O.D.) |
| User option |
• Basic cutter tray
• Advanced cutter tray
• Universal cutter tray
• KP-200 Plus keyboard display unit |
