| Specification |
| Model |
MH261T |
MH361T |
| Resolution |
8 dots/mm (203 DPI) |
12 dots/mm (300 DPI) |
| Printing method |
Thermal Transfer and Direct Thermal |
| Max. print speed |
305 mm (12”)/second |
254 mm (10”)/second |
| Max. print width |
168 mm (6.61”) |
| Max. print length |
14,732 mm (580“) |
6,604 mm (260“) |
| Enclosure |
Die-cast print mechanism with large clear media view window |
| Physical dimension |
357 mm (W) x 313 mm (H) x 514 mm (D) 14.05” (W) x 12.32 (H) x 20.24” (D) |
| Weight |
17.8 kg (39.24 lbs) |
| Label roll capacity |
208.3 mm (8.2”) O.D. |
| Internal rewinder (full roll) |
Internal rewinder kit (5” O.D.) (dealer option) |
| Ribbon |
450 m long, max. O.D. 81 mm, 1“ core (Ink coated outside or inside) |
| Ribbon width |
50.8 mm ~ 178 mm (2” ~ 7”) |
| Processor |
32-bit RISC CPU |
| Memory |
• 512MB Flash memory
• 256MB SDRAM
• microSD Flash memory card reader for Flash memory expansion, up to 32 GB |
| Interface |
• RS-232
• Parallel
• USB 2.0 (High speed mode)
• Internal Ethernet, 10/100 Mbps
• USB host *2 (Front side), for scanner or PC keyboard
• GPIO (DB15F) (dealer option)
• Slot-in 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 4.2 combo module (dealer option) |
| Power |
Auto sensing power supply
• Input: AC 100-240V, 4-2A, 50-60Hz
• Output: DC 5V, 5A; DC 24V, 7A; DC 36V, 1.4A; Total 243W |
| LCD display/ Operation buttons |
• Multi-language selectable
• 6 operation buttons
• 1 LED (with 2 LEDs Green & Red) |
| LCD |
4.3” color display, 480 x 272 pixel; Resistive touch screen |
| Sensors |
• Gap transmissive sensor (Position adjustable)
• Black mark reflective sensor (Bottom black mark sensor, Position adjustable)
• Head open sensor
• Ribbon encoder sensor
• Ribbon end sensor |
| Real time clock |
Standard |
| Internal font |
• 8 alpha-numeric bitmap fonts
• Monotype Image® true type font engine with CG Triumvirate Bold Condensed scalable font |
| Barcode |
1D barcode Code 39, Code 93, Code128UCC, Code128 subsets A.B.C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, RSS-Stacked, GS1 DataBar, Code 11, China Post
2D barcode PDF-417, Maxicode, DataMatrix, QR code, Aztec |
| Font & barcode rotation |
0, 90, 180, 270 degree |
| Printer language |
TSPL-EZD (Compatible to EPL, ZPL, ZPL II, DPL) |
| Media type |
Continuous, die-cut, black mark (Bottom side black mark only), fan-fold, notch (outside wound) |
| Media width |
50.8 ~ 172.7 mm (2“~ 6.8“) |
| Media thickness |
0.06 ~ 0.268 mm (2.36~ 11.02 mil) |
| Media core diameter |
3.81 mm / 76.2 mm (1.5”/ 3”) |
| Label length |
10 ~14,732 mm (0.39“~ 580“) |
10 ~ 6,604 mm (0.39“~ 260“) |
| Environment condition |
• Operation: 0~40˚C (32 ~104˚F), 25~85% non-condensing
• Storage: -40 ~60 ˚C (-40 ~140˚F), 10~90% non-condensing |
| Safety regulation |
FCC Class A, CE Class A, RCM Class A, UL, cUL, TÜV, CCC, KC, BIS, BSMI, EAC, Argentina S mark, Mexico CoC, ENERGY STAR® |
| Environmental concern |
Comply with RoHS, WEEE |
| Accessories |
•Windows labeling software CD disk
• Quick start guide
• USB port cable
• Power cord |
| Limited warranty |
• Printer: 2 years
• Print head: 25 km (1 million inches) or 12 months which comes first
• Platen: 50 km (2 million inches) or 12 months which comes first |
| Dealer option |
• GPIO (DB15F)
• Heavy duty cutter
• 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 4.2 combo module (including slot-in housing) *
• Peel-off kit
• Internal rewinder kit (5” O.D.) |
| User option |
• KP-200 Plus keyboard display unit |

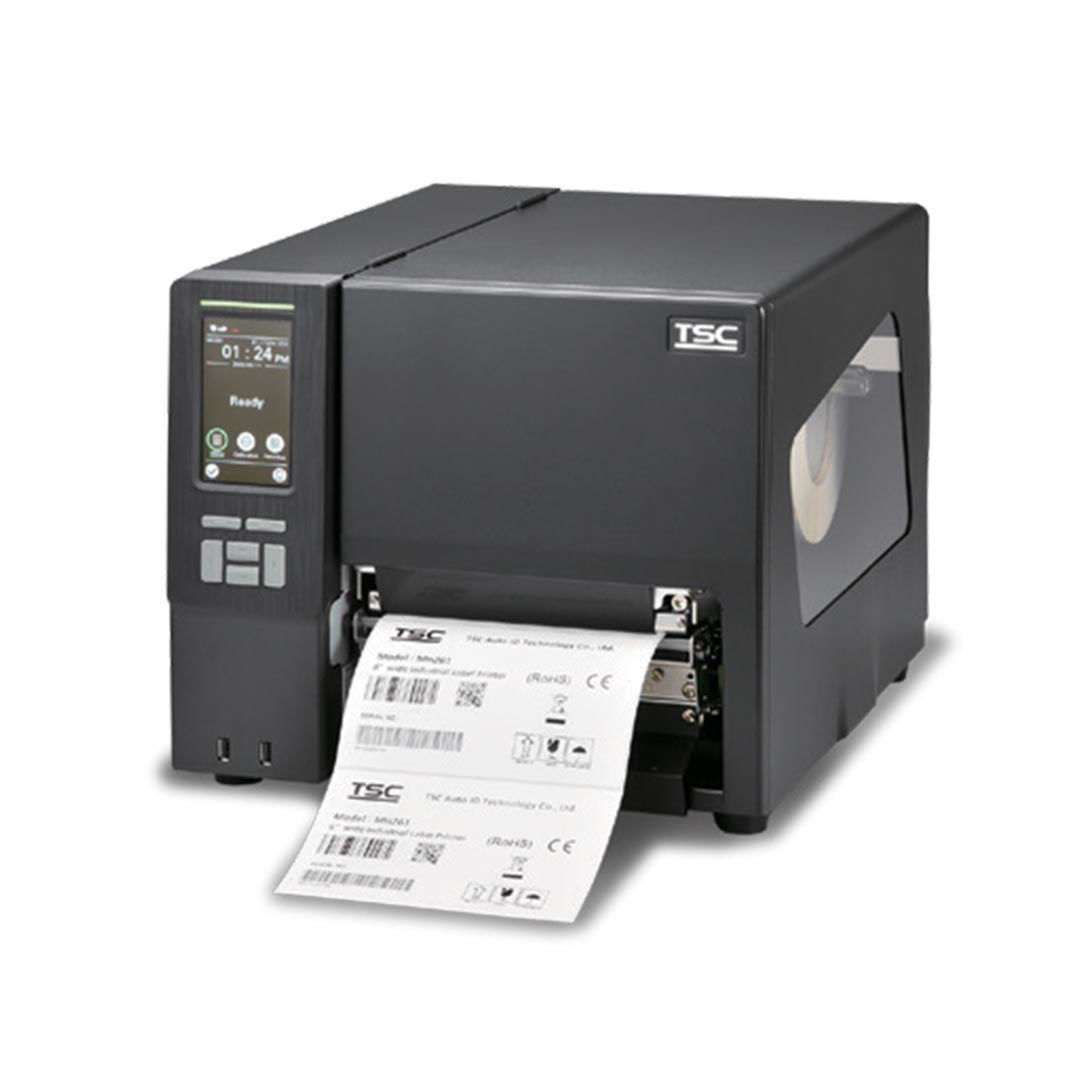

-เครื่องพิมพ์บาร์โค้ดอุตสาหกรรม_268.jpeg "TSC MH361T")
