| PRINTER MODEL |

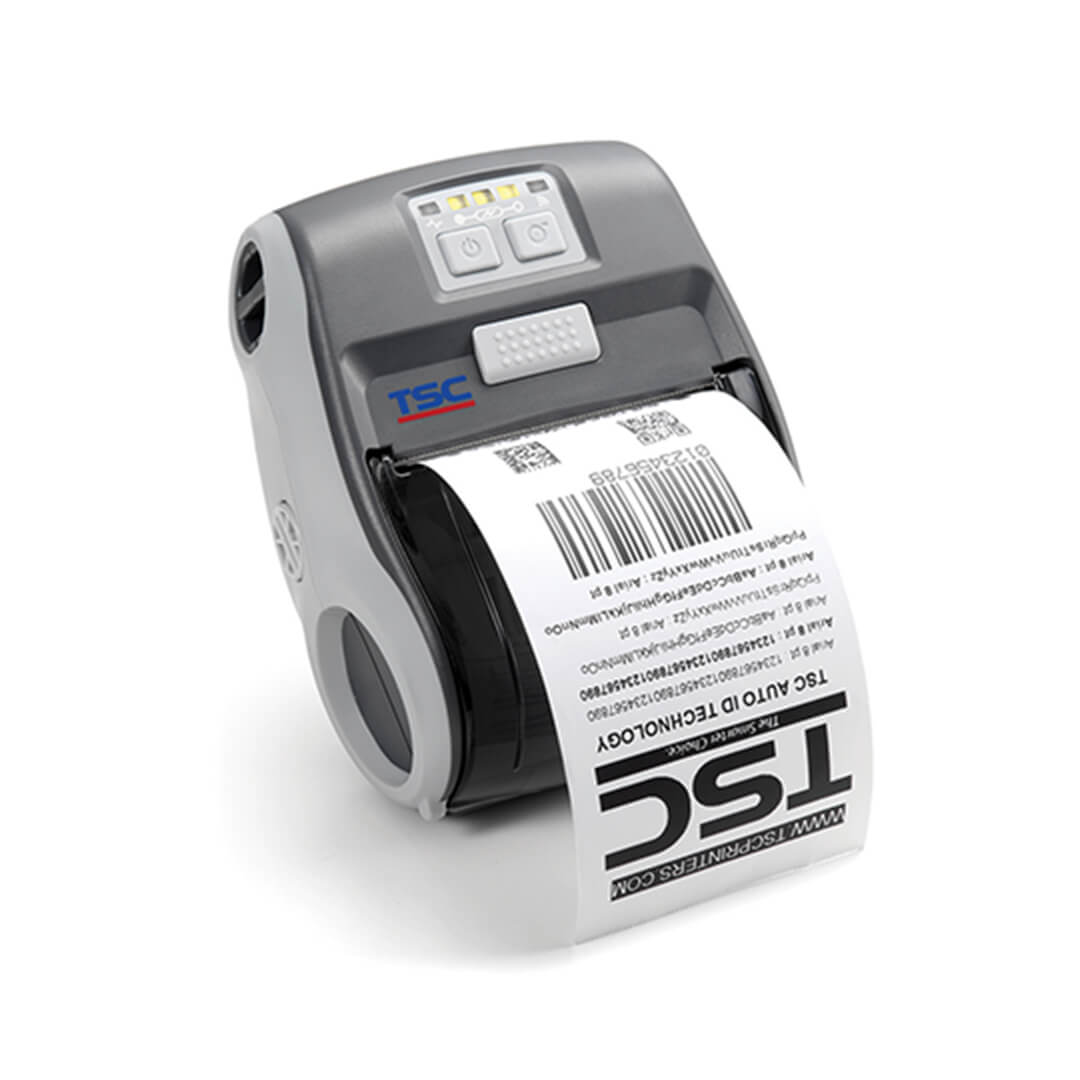

Alpha-3R |
| Resolution |
8 dots/mm (203 DPI) |
| Printing method |
Direct Thermal |
| Max. print speed |
102 mm (4”)/second |
| Max. print width |
72 mm (2.83”) |
| Max. print length |
2,286 mm (90“) |
| Enclosure |
Plastic with rubber over-mold construction |
| Physical dimension |
116 mm (W) x 148 mm (H) x 70 mm (D)
4.57”(W) x 5.83”(H) x 2.75”(D) |
| Weight (including battery |
0.55 kg (1.212 lbs |
| Drop specification |
1.5 m (5 ft) |
| IP rating |
IP54 (w/case |
| Max. roll capacity |
Receipt: 57 mm (2.25”) OD
Label: 55 mm (2.16”) OD |
| Processor |
32-bit RISC CPU |
| Memory |
• 4 MB Flash memory
• 8 MB SDRAM |
| Interface |
• USB 2.0
• 802.11 a/b/g/n Wireless (factory option)
• Bluetooth (factory option)
• RS-232 (user option) |
| Power |
Two-cell, 7.4V DC, 2500 mAh Li-ion rechargeable battery |
| Operation switch, button |
• 3 buttons (On/off, feed, and cover-open)
• 2 color LED for printer status, 3 LEDs for battery status |
| Sensors |
• Reflective sensor
• Head open sensor |
| Internal fonts |
• 8 alpha-numeric bitmap fonts
• One Monotype Imaging® CG Triumvirate Bold Condensed scalable font |
| Bar code |
• 1D bar code Code 39, Code 93, Code128UCC, Code128 subsets A.B.C, Codabar, Interleave 2 of 5, EAN-8, EAN13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST, GS1 Data bar
• 2D bar code PDF-417, Maxicode, DataMatrix, QR code, Aztec |
| Printer language |
TSPL-EZ (EPL2, ZPL2), ESC-POS or CPCL emulation |
| Media type |
Receipt paper, receipt paper with black mark in printing side & selected label |
| Max. media width |
Receipt: 50.8 ~ 80 mm (2” ~ 3.15”)
Label: 50.8 ~ 78 mm (2” ~ 3.07”) |
| Media thickness |
Receipt: 0.0508 ~ 0.1016 mm (2 ~ 4 mil)
Label: Fasson standard label media up to 0.14 mm (5.5 mil) |
| Media core diameter |
Label: Min. 25.4 mm (1”) |
| Environment condition |
Operation: -10 ~ 50 °C (14 ~ 122 °F), 10 ~ 90% non-condensing
Storage: -40 ~ 60 °C (-40 ~ 140 °F), 10 ~ 90% non-condensing |
| Safety regulation |
FCC , CE , CB , CCC, C-Tick, BIS, EAC, IC, NOM, NCC |
| Environmental concern |
Comply with RoHS, WEEE |
| Accessories |
• Windows labeling software CD disk
• Quick start guide
• Belt Clip
• Li-ion battery
• Power adapter |
| Limited warranty |
• Printer: 2 years
• Print head: 25 km (1 million inches) or 12 months which comes first
• Platen: 25 km (1 million inches)
• Battery: 1 year |
| Factory options |
• 802.11 a/b/g/n Wireless network
• Bluetooth
• MFi |
| User options |
• Mini type USB 2.0
• USB to RS-232 converter cable
• Li-ion battery
• Charge station 1 cell (with changeable power connector)
• Charge station 4 cell (with changeable power connector)
• 12-24V DC automobile cigarette lighter plug (vehicle power adapter)
• IP54-rated environmental case with shoulder strap |
