| specifications |

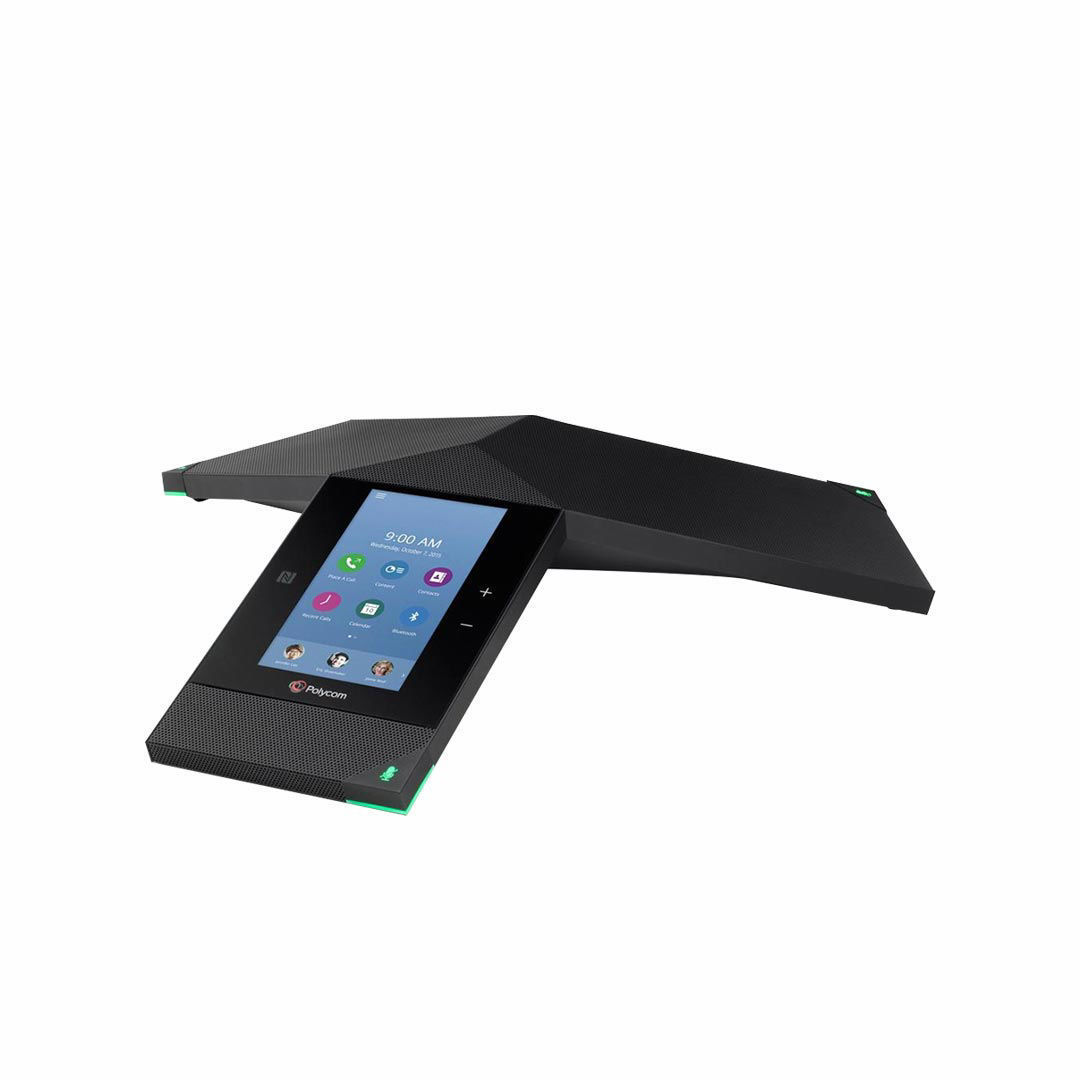

Trio 8800 |
| User interface features |
- Gesture-based, multitouch-capable capacitive touch screen
- 5-inch color LCD (720 x 1280 pixel), 9:16 aspect ratio
- On-screen virtual keyboard
- 1x USB 2.0 Type A-compliant host port USB battery charging BC1.2 compliant1
- - 1x USB 2.0 Micro-B device port
- Integrated Bluetooth 4.0 and NFC
- 3 illuminated mute buttons
- Unicode UTF-8-character support
- User interface localized in Arabic, Chinese, Danish, Dutch, English (Canada/ US/UK), French, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish and Swedish
|
| Audio Features |
- 3 cardioid microphones
- Loudspeaker - Frequency: 100-22,000 Hz - Volume: 92 dB at 0.5m peak volume
- 6m/20-foot microphone pickup range
- Supported codecs: - G.711 (A-law and μ-law) - G.719 - G.729AB - iLBC (13.33Kbps and 15.2Kbps) - Opus (8Kbps – 24Kbps) - G.722 - G.722.1, G.722.1C - Polycom® Siren™ 14
- Polycom® HD Voice™
- Polycom® Acoustic Clarity™ technology provides full-duplex conversations, acoustic echo cancellation and background noise suppression - Type 1 compliant (IEEE 1329 full duplex)
- Polycom® NoiseBlock™
- Voice activity detection
- Comfort noise generation
- DTMF tone generation (RFC 2833 and in-band)
- Low-delay audio packet transmission
- Adaptive jitter buffers
- Packet loss concealment
- Bluetooth device pairing for wideband speech and multimedia streaming (HFP/AD2P)
- Call handling features
- 1 line (registration)
- Shared call/bridged line appearance
- Distinctive incoming call treatment/call waiting
- Call timer and call waiting
- Call transfer, hold, divert (forward), pickup
- Called, calling, connected-party information
- Local five-way audio conferencing
- One-touch speed dial
- Do-not-disturb function
- Local configurable digit map/dial plan
- Corporate directory access using LDAP
- Visual conference management
|
| Network and provisioning |
- Open SIP and Microsoft Lync 2013/Skype for Business SIP client
- SDP
- IETF SIP (RFC 3261 and companion RFCs)
- Two-port gigabit Ethernet switch - 10/100/1000Base-TX across LAN and 2nd port - 2nd port supports IEEE 802.3af PSE
- 802.11 a/b/g/n (Wi-Fi) network connectivity
- Manual or dynamic host configuration protocol (DHCP) network setup
- Time and date synchronization using SNTP
- FTP/TFTP/HTTP/HTTPS server-based central provisioning
- Polycom Zero Touch Provisioning
- Provisioning and call server redundancy supported
- QoS Support - IEEE 802.1p/Q tagging (VLAN), layer 3 TOS, and DSCP - WMM (Wi-Fi multimedia)
- VLAN – CDP, DHCP VLAN discovery
- LLDP-MED for VLAN discovery
|
| Security |
- 802.1X authentication and EAPOL
- Media encryption via SRTP
- Transport layer security (TLS)
- Encrypted configuration files
- Digest authentication
- Password login
- Support for URL syntax with password for boot server address
- HTTPS secure provisioning
- Support for signed software executables
- Wi-Fi encryption: WEP, WPA-Personal, WPA2-Personal, WPA2-Enterprise with 802.1X (EAP-TLS, PEAP-MSCHAPv2)
|
| Power |
- LAN IN: Built-in auto-sensing IEEE 802.3at. PoE Device (Class 4)1. Backward compatibility with IEEE 802.3af.
- LAN OUT: Built-in auto-sensing IEEE 802.3af power sourcing equipment1
|
| Approvals |
- Japan MIC/VCCI Class B
- FCC Part 15 (CFR 47) Class B
- ICES-003 Class B
- EN55022 Class B
- CISPR22 Class B
- VCCI Class B
- EN55024
- EN61000-3-2; EN61000-3-3
- NZ Telepermit
- Australia A&C Tick
- ROHS compliant
- 19471-0715
|
| Radio |
- US
- FCC Part 15.247
- FCC Part 15.407
- FCC Part 15.225
- Canada
- EU
- ETSI EN 300 328 v1.9.1
- ETSI EN 301 893 v1.7.1
- ETSI EN 300 330
- ETSI EN 301 489-3
- ETSI EN 301 489-17
- Japan
- Japan Item (19)
- Japan Item (19)-3
- Japan Item (19)-3-2
- Australia
|
| WiFi |
- 2.4GHz 18.52dBm – 5GHz 20.68dBm
- 2400MHz to 2483.5MHZ
- 5150MHz to 5250MHz
- 5250MHz to 5350MHz
- 5470MHz to 5725MHz
- 5725MHz to 5825MHz
- Bluetooth – 7.15dBm
- NFC –12.7dBuA/m
|
| Safety |
- UL 60950-1
- CE Mark
- CAN/CSA-C22.2 No. 60950-1-03
- EN 60950-1
- IEC 60950-1
- AS/NZS 60950-1
|
| Environmental conditions |
- Operating temperature: 0 to 40°C (+32 to 104°F)
- Relative humidity: 5% to 95% (non-condensing)
- Storage temperature: -20 to +70°C (-4 to +160°F)
|
| RealPresence Trio 8800 ships with: |
- Phone console
- 7.6m/25-foot network cable CAT 5e
- 2m/6.5-foot USB 2.0 cable
- Cable wrap
- Tactile overlay for improved accessibility
- Setup sheet
|
| Accessories (optional) |
- RealPresence Trio Expansion Microphones (2200-65790-001)
- Power kit incl. ext. single-port gigabit midspan, 802.3at Type 2 compliant, local power cord and network cable (7200- 23490-xxx)
- RealPresence Trio Visual+ for enabling content presentation and video (2200-13339-xxx)
|
| Warranty |
1 year |
| Phone dimensions (L x W x H) |
- 38.3 x 7.5 x 33.2 cm (15.1 x 2.9 x 13.1 in)
- Unit weight: 0.95Kg (2.1 lbs)
|
| Box dimensions (L x W x H) |
- 48.3 x 11.5 x 39.4 cm (19 x 4.5 x 15.5 in)
- Box weight: 1.97 Kg (4.35 lbs)
|
