| Specifications |

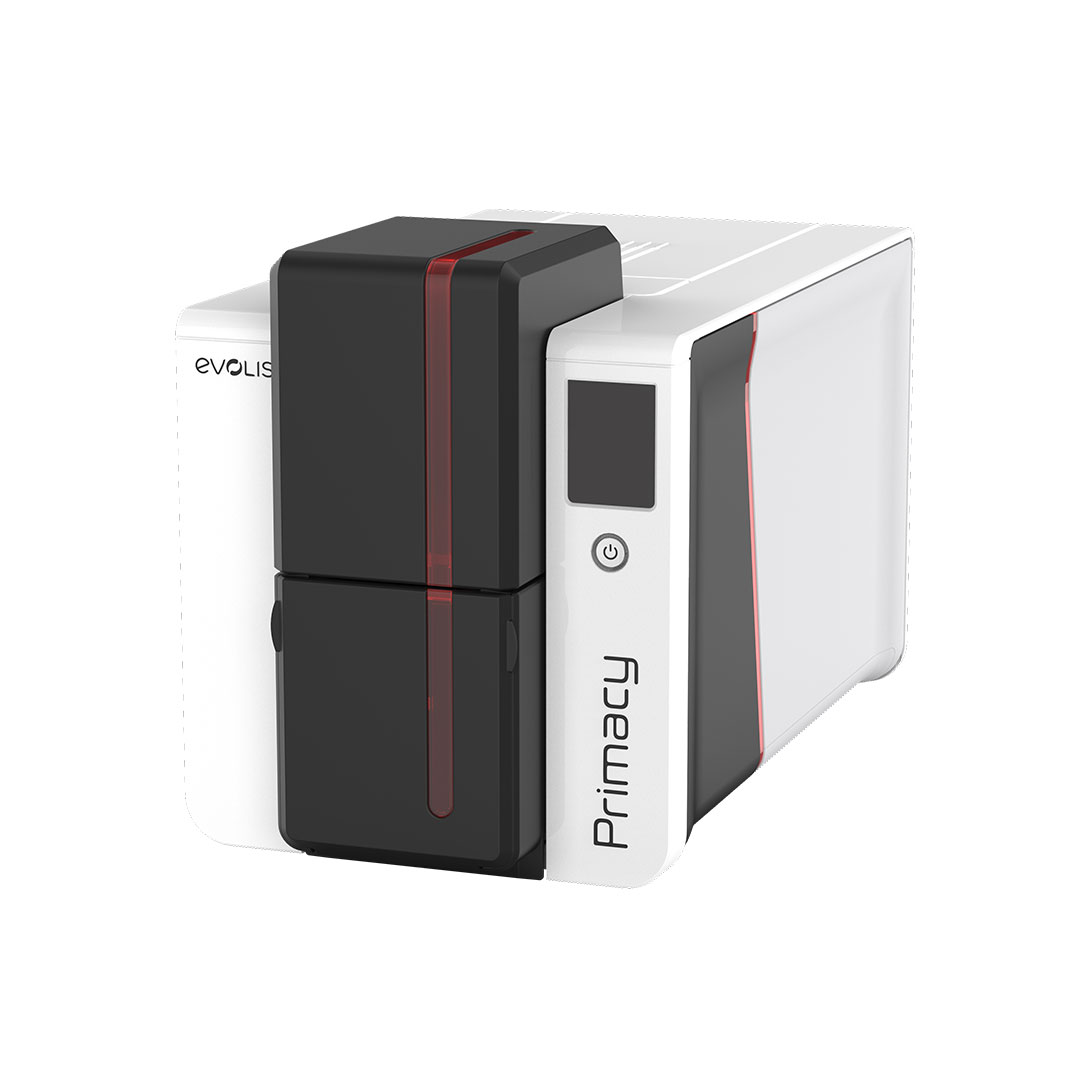

EVOLIS Primacy2 |
| GENERAL FEATURES |
∙ Color sublimation directly on the card and resin thermal
transfer
∙ Rewritable card printing
∙ Single or double-sided print module
∙ Print resolution:
- In color and monochrome: 300x300 dpi & 300x600 dpi
- In monochrome: 300x1200 dpi
∙ Print optimization via color profile
∙ 32 MB memory (RAM) standard - optional 64 MB
∙ Print head protection during maintenance or ribbon changes |
| PRINT SPEED |
∙ Single-sided (YMCKO): up to 280 cards/hour
∙ Double-sided (YMCKOK): 170 cards/hour
∙ Single-sided (YMCK) with lamination module: up to 215 cards/hour |
| CARD MANAGEMENT AND SPECIFICATIONS |
∙ Feeder capacity: 100 cards (0.76 mm – 30 mil)
∙ Hopper capacity: 100 cards (0.76 mm – 30 mil)
∙ Rear hopper capacity: 50 cards (0.76 mm – 30 mil)
∙ Card types: PVC cards, composite PVC cards, PET cards,
ABScards, and rewritable card
∙ Feeder capacity: 200 cards (0.76 mm – 30 mil)Optional
∙ Card thickness: 0.25 to 1.25 mm (10 to 50 mil)
∙ Card format: ISO CR80 - ISO 7810 (53.98 mm x 85.60 mm) |
| PORTS/CONNECTIVITY |
∙ USB (cable supplied) and Ethernet
∙ Wireless connection 802.11b/g on Wireless range Optional |
| EVOLIS HIGH TRUST® RIBBONS |
To maximize the quality and lifetime of the printed cards, the
service life of the print head, and the overall reliability of your
printer, use Evolis High Trust® ribbons.
∙ Automatic recognition and setup
∙ Ribbon cassettes for one-step installation or an EASY4PRO
offer without cassette for users who want to reduce their
environmental impact.
- YMCKO: 300 prints per roll
- YMCKOK: 200 prints per roll
- YMCKOO: 250 prints per roll
- Black monochrome: 2000 prints per roll
Ribbon saver for monochrome printing |
| ECO-FRIENDLY DESIGN, CERTIFICATIONS AND STATEMENT OF COMPLIANCE |
∙ Standby, sleep modes & reduced energy consumption
∙ CE, FCC, ICES, VCCI, CCC, KC, BIS, EAC
∙ RoHS |
| LAMINATION (OPTION) |
∙ Standard single and double-sided
∙ Extensive laminate offering: patches (600 sides per roll) and
varnishes (1,200 sides per roll), with or without hologram,
alternate laminates (contact chip cut-out / magnetic stripe
cut-out). |
| OPTIONS INTEGRATED ON SITE |
∙ Double-sided activation key
∙ 200-card Feeder Optional
∙ LCD touch screen
∙ Lamination module |
| SECURITY |
∙ Kensington® security lock optional
∙ Optional mechanical locking system
∙ Erasing sensitive data from the printer memory
∙ Kineclipse® optional
∙ Optional internal scanner reader |
| ADDITIONAL ENCODING MODULES |
- Magnetic stripe encoder ISO 7811
- Contact smartcard encoders
- Contactless smartcard encoders
- Dual smartcard encoders (contact / contactless)
∙ Options can be combined
∙ Factory or on-site installation |
| SOFTWARE |
∙ Printer management by Evolis Premium Suite for Windows,
Mac, and Linux
∙ Evolis SDK available for easy product integration
∙ Supplied with cardPresso XXS for designing and printing badges
∙ Compatible with Windows® (32/64 bits): W8.1, W10, W11 |
| SIZE AND WEIGHT |
∙ Size (H x W x D):247 x 205 x 381 mm (9.72’’ x 8.07’’ x 14.99’’)
∙ Weight: 4.15 kg (9.14 lbs) |
| POWER |
∙ Power supply : 100-240 Volts AC, 50-60 Hz, 1.5 A
∙ Printer : 24 Volts DC, 2.7 A |
| WARRANTY CONDITIONS |
∙ 3 years for the printer
∙ Optional extended warranty available |
