| Specifications |

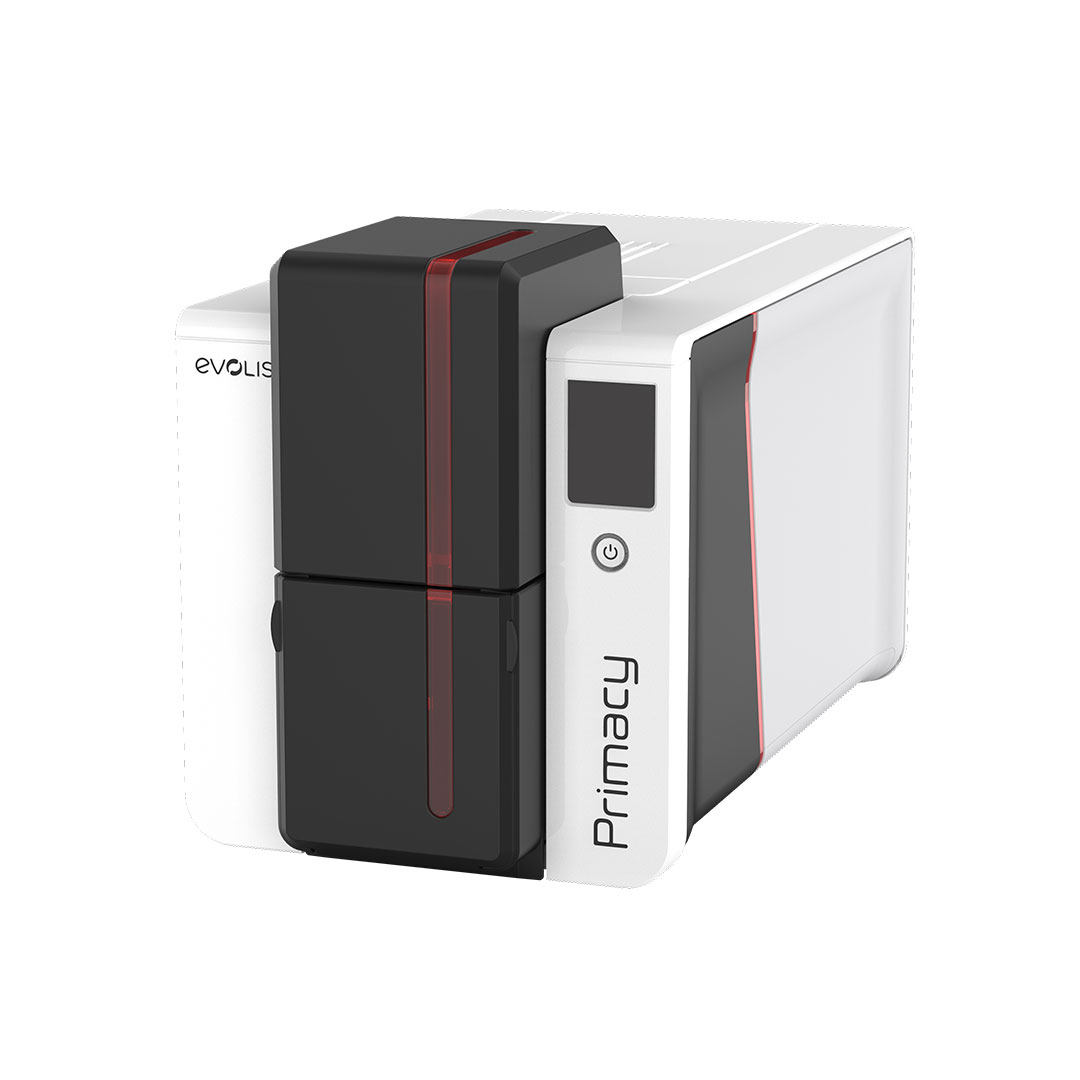

EVOLIS Primacy2 with LCD Touch Screen |
| GENERAL FEATURES |
- Color sublimation directly on the card and resin thermal transfer
- Rewritable card printing
- Single or double-sided print module
- Print resolution:
- In color and monochrome: 300x300 dpi & 300x600 dpi
- In monochrome: 300x1200 dpi
- Print optimization via color profile
- 32 MB memory (RAM) standard - optional 64 MB
- Print head protection during maintenance or ribbon changes
- Printer LEDs
|
| PRINT SPEED |
- Single-sided (YMCKO): up to 280 cards/hour
- Single-sided (Monochrome) up to 1000 cards/hour
- Double-sided (YMCKOK): 170 cards/hour
- Single-sided (YMCK) with lamination module: up to 215 cards/hour
|
| CARD MANAGEMENT AND SPECIFICATIONS |
- Feeder capacity: 100 cards (0.76 mm – 30 mil)
- Hopper capacity: 100 cards (0.76 mm – 30 mil)
- Rear hopper capacity: 50 cards (0.76 mm – 30 mil)
- Card types: PVC cards, composite PVC cards, PET cards, ABScards, and rewritable card
- Feeder capacity: 200 cards (0.76 mm – 30 mil)Optional
- Card thickness: 0.25 to 1.25 mm (10 to 50 mil)
- Card format: ISO CR80 - ISO 7810 (53.98 mm x 85.60 mm)
|
| PORTS/CONNECTIVITY |
- USB (cable supplied) and Ethernet
- Wireless connection 802.11b/g on Wireless range Optional
|
| EVOLIS HIGH TRUST® RIBBONS |
To maximize the quality and lifetime of the printed cards, the
service life of the print head, and the overall reliability of your
printer, use Evolis High Trust® ribbons.
- Automatic recognition and setup
- Ribbon cassettes for one-step installation or an EASY4PRO offer without cassette for users who want to reduce their
environmental impact.
- YMCKO: 300 prints per roll
- YMCKOK: 200 prints per roll
- YMCKOO: 250 prints per roll
- Black monochrome: 2000 prints per roll
Ribbon saver for monochrome printing
List of ribbons available at www.evolis.com |
| ECO-FRIENDLY DESIGN, CERTIFICATIONS AND STATEMENT OF COMPLIANCE |
- Standby, sleep modes & reduced energy consumption
- CE, FCC, ICES, VCCI, CCC, KC, BIS, EAC
- RoHS
|
| LAMINATION (OPTION) |
- Standard single and double-sided
- Extensive laminate offering: patches (600 sides per roll) and varnishes (1,200 sides per roll), with or without hologram, alternate laminates (contact chip cut-out / magnetic stripe cut-out).
List of laminates available at www.evolis.com
|
| OPTIONS INTEGRATED ON SITE |
- Double-sided activation key
- 200-card Feeder Optional
- LCD touch screen
- Lamination module
|
| SECURITY |
- Kensington® security lock optional
- Optional mechanical locking system
- Erasing sensitive data from the printer memory
- Kineclipse® optional
- Optional internal scanner reader
|
| ADDITIONAL ENCODING MODULES |
- Magnetic stripe encoder ISO 7811
- Contact smartcard encoders
- Contactless smartcard encoders
- Dual smartcard encoders (contact / contactless)
- Options can be combined
- Factory or on-site installation
|
| SOFTWARE |
- Printer management by Evolis Premium Suite for Windows, Mac, and Linux
- Evolis SDK available for easy product integration
- Supplied with cardPresso XXS for designing and printing badges
- Compatible with Windows® (32/64 bits): W8.1, W10, W11
|
| SIZE AND WEIGHT |
- Size (H x W x D):247 x 205 x 381 mm (9.72’’ x 8.07’’ x 14.99’’)
- Weight: 4.15 kg (9.14 lbs)
|
| POWER |
- Power supply : 100-240 Volts AC, 50-60 Hz, 1.5 A
- Printer : 24 Volts DC, 2.7 A
|
| WARRANTY CONDITIONS |
- 3 years for the printer
- Optional extended warranty available
|
