| GENERAL FEATURES |
|
| |
- Single-side print module
- Color sublimation, monochrome thermal transfer
- Printing resolution: 260 x 300 dpi
- 2 million colors 16 MB of memory (RAM)
- Printable area: edge-to-edge
|
| PRINTING SPEED |
|
| Color (YMCKO) |
38 sec/card - 95 cards/hour |
| Black |
11 sec/card - 325 cards/hour |
| PORTS/CONNECTIVITY |
USB 2.0 (USB 1.1 and 3.0 compatible) |
| SECURITY |
Space for Kensington® security lock |
| ECO-DESIGN, CERTIFICATIONS AND DECLARATION OF CONFORMITY |
- Extended standby mode and reduced electricity consumption
- CE, FCC, VCCI, BIS, CCC, KC
- RoHS
|
| POWER SUPPLY |
|
| Power supply unit |
100-240 V AC, 50-60 Hz, 1.7 A |
| Printer |
24 Volts DC, 2.71 A |
| MANAGEMENT AND CARD FEATURES |
|
| Card feeder capacity |
25 cards (0.76 mm) to 40 cards (0.50 mm) |
| Output hopper capacity |
25 cards (0.76 mm) to 40 cards (0.50 mm) |
| Card thickness |
0.50 to 0.76 mm, automatic adjustment of the gauge |
| Card type |
PVC cards |
| Card format |
ISO CR-80 – ISO 7810 (53.98 x 85.60 mm) |
| Included in the solution |
pack of 100 PVC cards 0.76 mm |
| PRINTING RIBBONS |
|
| Included in the solution |
YMCKO: 100 prints/ribbon |
| Available to order |
- YMCKO: 100 prints/ribbon
- Monochrome black ribbon: 500 prints/ribbon (integrated ribbon saving)
|
| |
Automatic recognition and confi guration |
| |
Ribbon inserted in a cassette for easier handling |
| OPERATING SYSTEMS |
- Windows® XP, Vista 32/64, W7 32/64, W8 32/64, W10 32/64
- Mac OS X 10.6, 10.7, 10.8, 10.9
|
| OPERATING ENVIRONMENT |
|
| Min/max operating temperature |
15° / 30° C (59° / 86° F) |
| Humidity |
20% to 65% non-condensing |
| Min/max storage temperature |
-5° / +70° C (23° / 158° F) |
| Storage humidity |
20% to 70% non-condensing |
| Ventilation in operation |
free air circulation |
| SOFTWARE |
|
| Supplied with |
Evolis Badge Studio® + (Advanced version with import from databases) |
| |
Compatible with Windows® and Mac |
| PACKAGE CONTENTS |

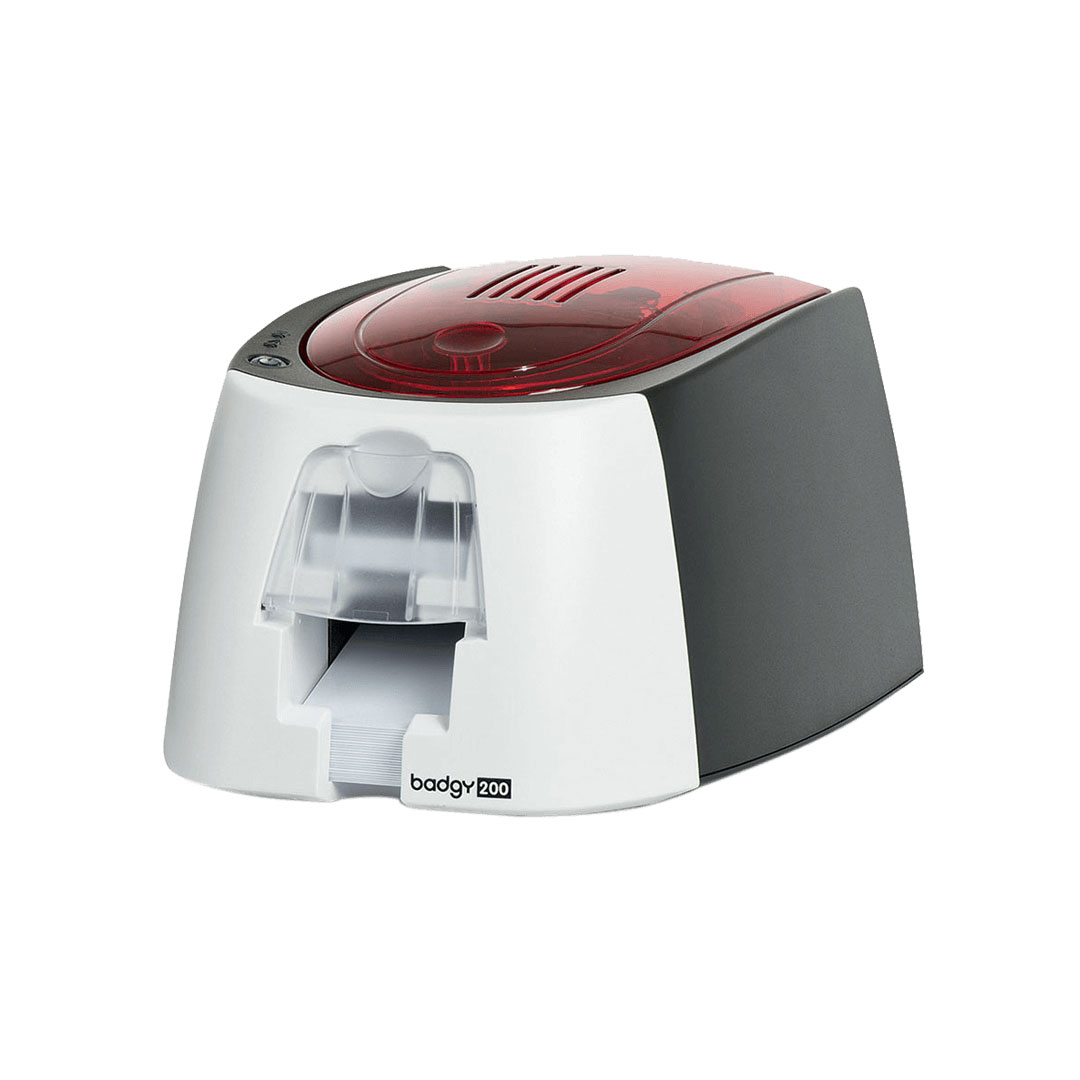

- BADGY200 printer
- Color ribbon (YMCKO) 100 prints
- 100 blank PVC cards 0.76 mm (30 mil)
- Installation CD including print driver, card templates, Evolis Badge Studio® + software (Advanced version)
- Power supply unit and cable
- USB cable
|
| DIMENSIONS AND WEIGHT |
|
| Complete packaged solution |
- Dimensions (H x W x D): 315 x 385 x 285 mm (12.4“ x 15.15“ x 11.22“)
- Weight: 3.95 kg (8.7 lbs)
|
| Printer |
- Dimensions (H x W x D): 148 x 200 x 276 mm (5.83“ x 7.87“ x 10.87“)
- Weight: 1.665 kg (3.67 lbs)
|
