| Specifications |

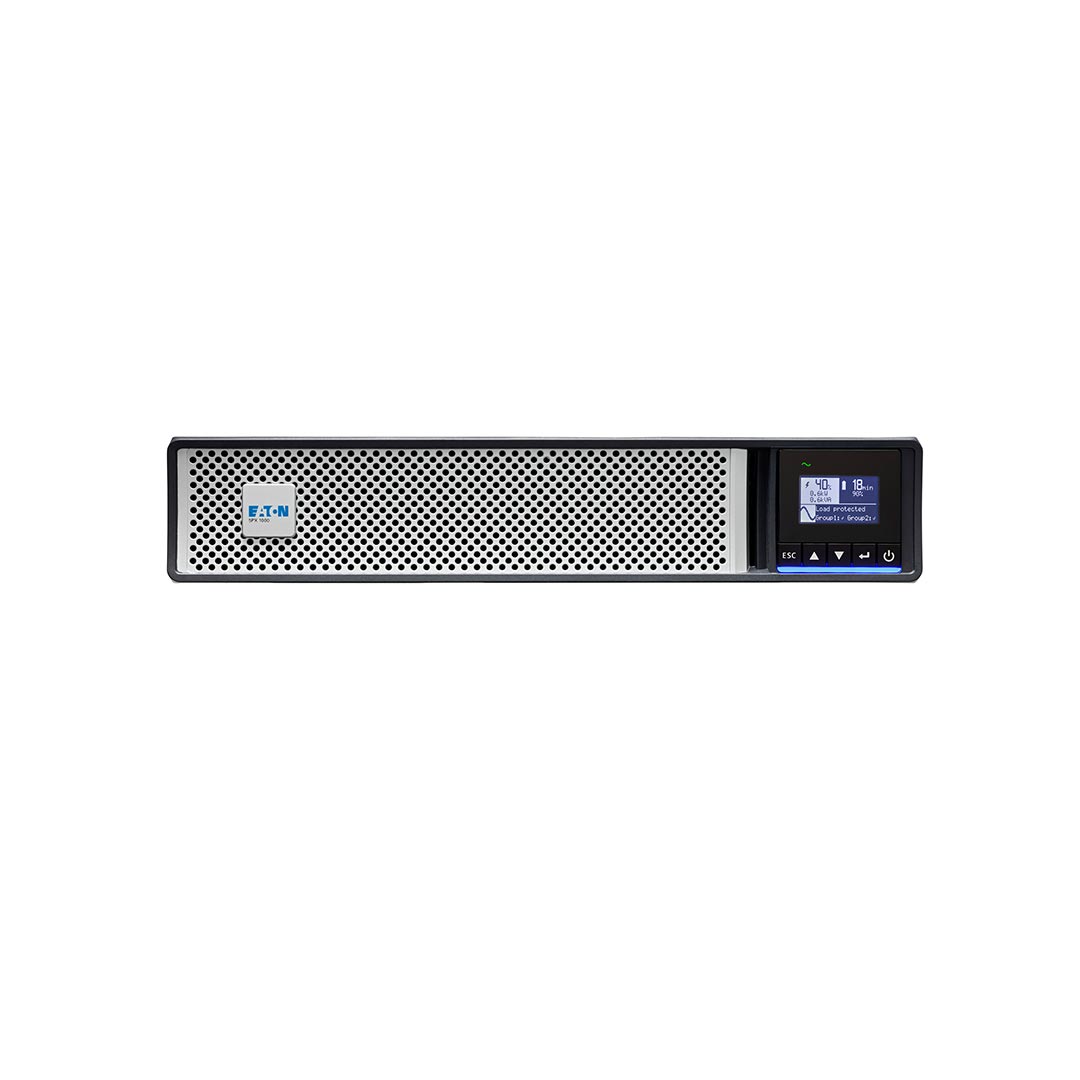

EATON 5PX |
| |
1000 |
1500 |
2200 |
3000 |
|
| Rating (VA/W) |
1000VA / 1000W |
1500VA / 1500W |
2200VA / 2200W |
3000VA / 3000W |
|
| Format (RT: Tower / Rack) |
RT2U |
RT2U |
RT2U & RT3U |
RT2U & RT3U |
|
| Electrical characteristics |
| Technology |
Line-Interactive High Frequency (Pure Sinewave, Booster + Fader) |
|
| Input voltage range without using batteries |
160V-294V (adjustable to 150V-294V) |
|
| Input frequency range without using batteries |
47 to 70 Hz (50 Hz system), 56.5 to 70 Hz (60 Hz system), 40 Hz in low-sensitivity mode |
|
| Output voltage |
230 V (+6/-10 %) (Adjustable to 200V* / 208V / 220V / 230V / 240V), 50/60 Hz +/- 0.1 Hz (autosensing) |
|
| Connections |
| Input |
IEC C14 (10A) |
IEC C14 (10A) |
IEC C20 (16A |
IEC C20 (16A) |
|
| Outputs |
8 x IEC C13 (10A) |
8 x IEC C13 (10A) |
8 x IEC C13 (10A)
2 x IEC C19 (16A) |
8 x IEC C13 (10A)
2 x IEC C19 (16A) |
|
| Remote controlled sockets |
2 groups of 2 x IEC C13 (10A) |
2 groups of 2 x IEC C13 (10A) |
1 group of 2 x IEC C13 (10A)
1 group of 2 x IEC C13 (10A) + 1 x IEC C19 (16A) |
|
| Additional outputs with HS MBP |
4 FR / Schuko sockets or 3 BS sockets or 6 IEC 10A sockets or terminal blocks (HW version) |
|
| Additional outputs with FlexPDU |
8 FR / Schuko sockets or 6 BS sockets or 12 IEC 10A sockets |
|
| Batteries |
| Typical backup times ** |
300W |
800W |
1200W |
1800W |
2500W |
| 5PX 1000 |
30 |
8 |
|
|
|
| 5PX 1000 + 1 EBM / + 4EBM |
148 / 591 |
48 / 192 |
|
|
|
| 5PX 1500 |
44 |
13 |
7 |
|
|
| 5PX 1500 + 1 EBM / + 4EBM |
164/611 |
53 / 199 |
33 / 123 |
|
|
| 5PX 2200 |
50 |
16 |
9 |
4 |
|
| 5PX 2200 + 1 EBM / + 4EBM |
242 / 958 |
80 / 319 |
49/197 |
30/121 |
|
| 5PX 3000 |
68 |
23 |
13 |
7 |
4 |
| 5PX 3000 + 1 EBM / + 4EBM |
255 / 950 |
86 / 323 |
54/201 |
33/124 |
22/84 |
| Battery management |
ABM® & Temperature compensated charging method (user selectable), Automatic battery test, deep discharge protection, automatic recognition of external battery units |
| Interfaces |
| Communication ports |
1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote ON/OFF + 1 mini-terminal block for Remote Power OFF + 1 mini-terminal block for output relay |
| Communication slot |
1 slot for Network M2 (included in Netpack version), INDGW-M2 or Relay-MS cards |
| Operating conditions, standards and approvals |
| Operating temperature |
0 to 40°C |
| Noise level |
<40 dB @ typical load |
| Safety |
IEC/EN 62040-1, UL1778, CSA22.2 |
| EMC, Performance |
IEC/EN 62040-2, FCC Class B, CISPR22 class B |
| Approvals |
CE / CB report (TUV) / cTUVus / EAC / UKCA / Ukr / Cm |
| Dimensions W x D x H / Weight |
| UPS Dimensions (mm) |
438x448x85.5 |
438x448x85.5 |
438x603x85.5 (RT2U)
438x483x129 (RT3U) |
438x603x85.5 (RT2U)
438x483x129 (RT3U) |
|
| UPS Weight (kg) |
19.6 |
22.4 |
28.2 (RT2U) / 27.5 (RT3U) |
31.7 (RT2U) / 31.1 (RT3U) |
|
| EBM dimensions (mm) |
438x448x85.5 |
438x448x85.5 |
438x603x85.5 (RT2U)
438x483x129 (RT3U) |
438x603x85.5 (RT2U)
438x483x129 (RT3U) |
|
| EBM weight (kg) |
27.8 |
27.8 |
40.4 (RT2U) / 39.7 (RT3U) |
40.4 (RT2U) / 39.7 (RT3U) |
|
