| SPECIFICATIONS |

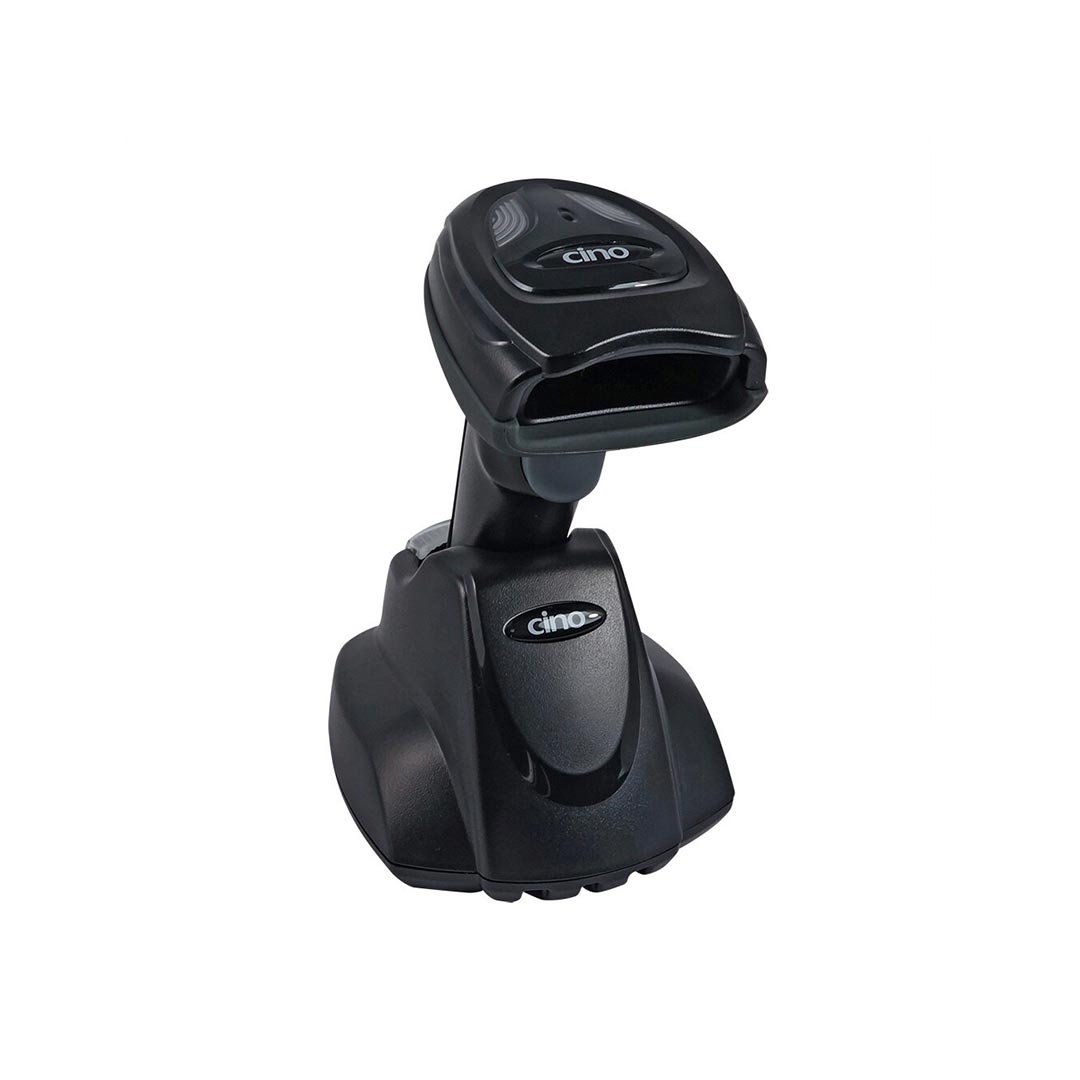

CINO A780HD |
| Performance Characteristics |
|
| Image Sensor |
1280 x 800 Pixels |
| Print Contrast |
18% minimum reflectance difference |
| Light Source |
660nm LED |
| Imager Field of View |
41.5˚H x 25.9˚V Nominal |
| Minimum Resolution |
HD Model
2.4 mil Code 39, 4.5 mil DM
SR Model
2.7 mil Code 39, 4.8 mil DM
ER Model
3.5 mil Code 39, 7 mil DM |
| Reading Range *1 |
HD Model
13 mil (0.33mm) UPC/EAN up to 14.1”
SR Model
13 mil (0.33mm) UPC/EAN up to 19.6”
ER Model
13 mil (0.33mm) UPC/EAN up to 26" |
| Roll, Pitch, Skew |
Roll: 360˚; Pitch: ± 75˚; Skew: ± 65˚ |
| Motion Tolerance |
Up to 617 cm/s (243 in/s) |
| Configuration Setup |
Command barcodes
Configuration barcodes
FuzzyScan PowerTool |
| Data Editing |
DataWizard Premium |
| Image Capture |
BMP |
| Electrical Characteristics |
|
| Battery |
3.7V, 2600mAH Li-ion rechargeable battery |
| Battery Charge Time |
Approx. 4-5 hours per full charge |
| Scans per full Charge |
More than 67,600 scans and transmissions |
| Operating Voltage |
5 ± 10% VDC |
| Operating Current |
Charging: Max.750 mA
Standby: Max.175 mA
(Scanner with Smart Cradle) |
| Communication Characteristics |
|
| RF Standard |
Bluetooth v4.0 |
| RF Frequency Band |
2.402~2.4830 GHz unlicensed ISM band |
| Radio Link Modes |
PAIR, PICO, SPP, HID |
| Communication Range |
More than 100 meters in open space when
working with Smart Cradle, line of sight |
| Supported Profiles |
SPP, HID |
| User Environment |
|
| Drop Specifications |
Withstands multiple drops from 2m (6.6ft) to concrete |
| Environmental Sealing |
IP42 |
| Operating Temperature |
-10˚C to 50˚C (14˚F to 122˚F) |
| Storage Temperature |
-40˚C to 70˚C (-40˚F to 158˚F) |
| Humidity |
5% to 95% relative humidity, non-condensing |
| Ambient Light Immunity |
0 ~ 106,000 lux |
| ESD Protection |
Functional after 15KV discharge |
| Supported Symbologies |
|
| 1D Linear Codes |
Code 39, Code 39 Full ASCII, Code 32, Code 128,
GS1-128, Codabar, Code 11, Code 93, GS1 DataBar,
Standard & Industrial 2 of 5, Interleaved & Matrix 2 of 5,
IATA, UPC/EAN/JAN, UPC/EAN/JAN with Addendum,
Telepen, MSI/Plessey & UK/Plessey |
| 2D Codes |
PDF417, Micro PDF417, Codablock F, Code 16K,
Code 49, Composite Codes, DataMatrix, MaxiCode,
QR Code, Aztec, MicroQR |
| Postal barcodes |
Australian Post, US Planet, US Postnet, Japan Post |
| Physical Characteristics |
|
| Dimensions |
93.5 mm (L) x 71 mm (W) x 160 mm (D)
3.68 in. (L) x 2.79 in. (W) x 6.29 in. (D) |
| Weight |
208g (Battery included) |
| Color |
Black |
| User Interfaces |
3 LEDs for power, good read and status indications
Programmable beeper
Optional vibrator |
| Operating Voltage |
5VDC ± 10% |
| Operating Current |
Operating : Typical 395 mA @5VDC
Standby : Typical 220 mA @5VDC |
| Safety & Regulatory |
|
| EMC |
CE, FCC, BSMI, RCM, KC, VCCI |
| Safety |
LED Eye Safety IEC62471, Exempt Group |
| Environmental |
Compliant with RoHS directive |
| Accessories |
|
|
Smart Cradle
RF Standard
Battery charging
User Interfaces
Host Interfaces
|
Bluetooth v4.0
Fast charge
1 blue link indicator,
2-color status indicator
Beeper, Paging / Reset button
USB HID (USB Keyboard)
USB VCOM (USB COM port emulation)
Standard RS232
|
|
Charging Cradle
Battery Charging:
User Interface:
|
Fast charge
1 blue power indicator
|
| Cables |
RS232 Serial Cable
USB Cable |
| Others |
5VDC Power Supply Unit
USB Power Cable
BT2100 Battery Pack (2600mAh)
US100 SmartStand
US50 Hands-Free Stand |
